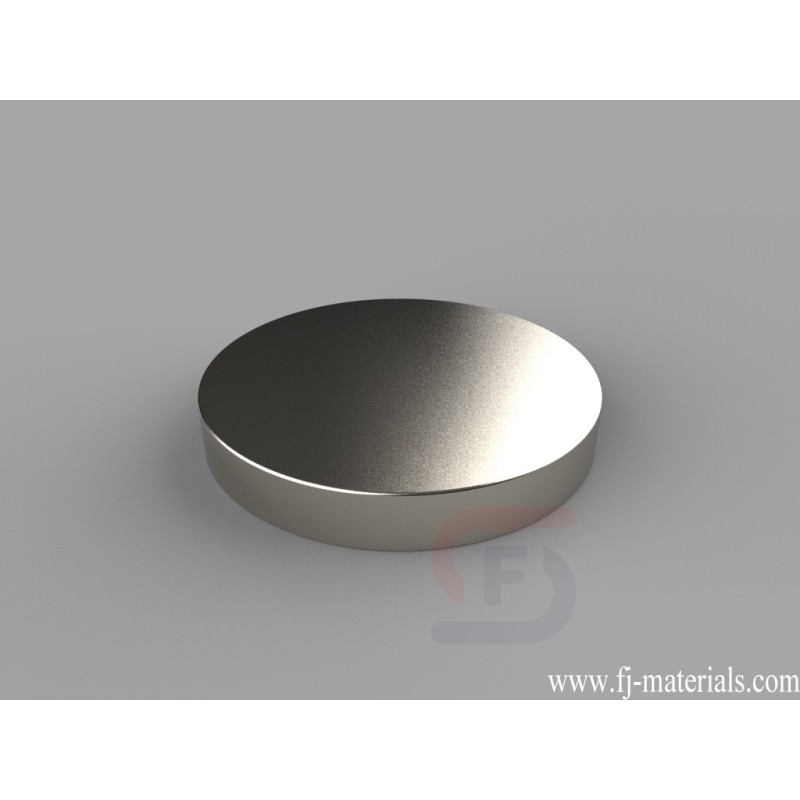

2 1/2 dia. x 3/8 inch thick Round Disc Magnets | DY86
DY86 Neodymium Magnets, 2 1/2 inch dia. x 3/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2 1/2" dia. x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 83.96 lbs.
DY86 Neodymium Magnet's dimesion is 2 1/2" dia. x 3/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DY86 Neodymium Magnets, 2 1/2 inch dia. x 3/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2 1/2" dia. x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 83.96 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DY86
Data sheet
- Item Number
- DY86
- Material
- NdFeB
- Grade
- N42
- Size
- 2 1/2" dia. x 3/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 226.237 g
- Pull Force
- 83.96 lbs
- Diameter
- H. 50.8-254mm
- Thickness
- C. 6.35-9.53mm
DY86 Neodymium Magnets, 2 1/2 inch dia. x 3/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2 1/2" dia. x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 83.96 lbs.
