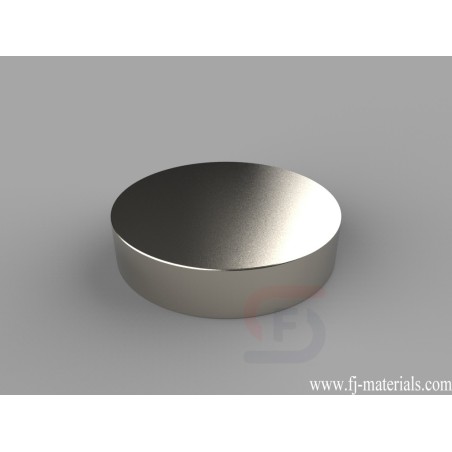

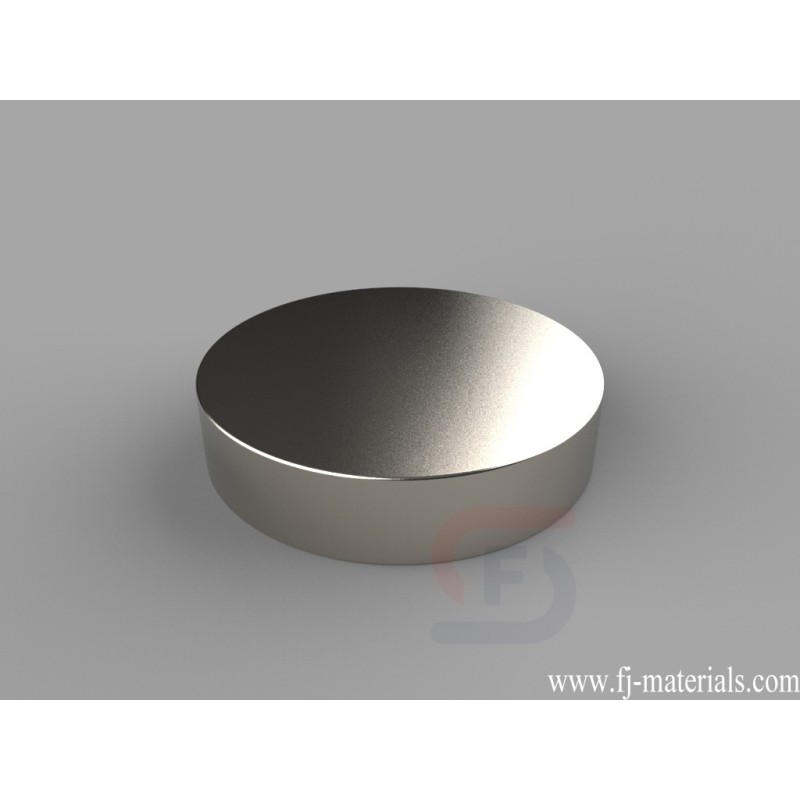

2 1/2 dia. x 9/16 inch thick Round Disc Magnets | DY89
DY89 Neodymium Magnets, 2 1/2 inch dia. x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2 1/2" dia. x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 125.95 lbs.
DY89 Neodymium Magnet's dimesion is 2 1/2" dia. x 9/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DY89 Neodymium Magnets, 2 1/2 inch dia. x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2 1/2" dia. x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 125.95 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DY89
Data sheet
- Item Number
- DY89
- Material
- NdFeB
- Grade
- N42
- Size
- 2 1/2" dia. x 9/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 339.3555 g
- Pull Force
- 125.95 lbs
- Diameter
- H. 50.8-254mm
- Thickness
- E. 12.7-19.05mm
DY89 Neodymium Magnets, 2 1/2 inch dia. x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2 1/2" dia. x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 125.95 lbs.
