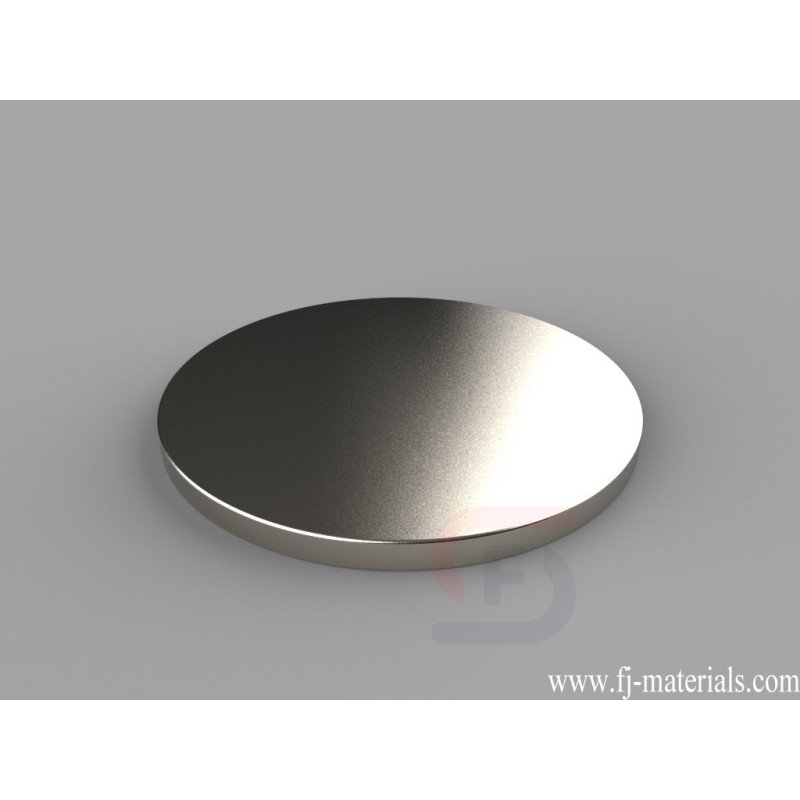

3 dia. x 3/16 inch thick Round Disc Magnets | DZ03

DZ03 Neodymium Magnets, 3 inch dia. x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" dia. x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 50.38 lbs.

DZ03 Neodymium Magnet's dimesion is 3" dia. x 3/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness

DZ03 Neodymium Magnets, 3 inch dia. x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" dia. x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 50.38 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

DZ03

Data sheet

Item Number
DZ03
Material
NdFeB
Grade
N42
Size
3" dia. x 3/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
162.8906 g
Pull Force
50.38 lbs
Diameter
H. 50.8-254mm
Thickness
B. 3.18-6.35mm
