3 dia. x 3/8 inch thick Round Disc Magnets | DZ06

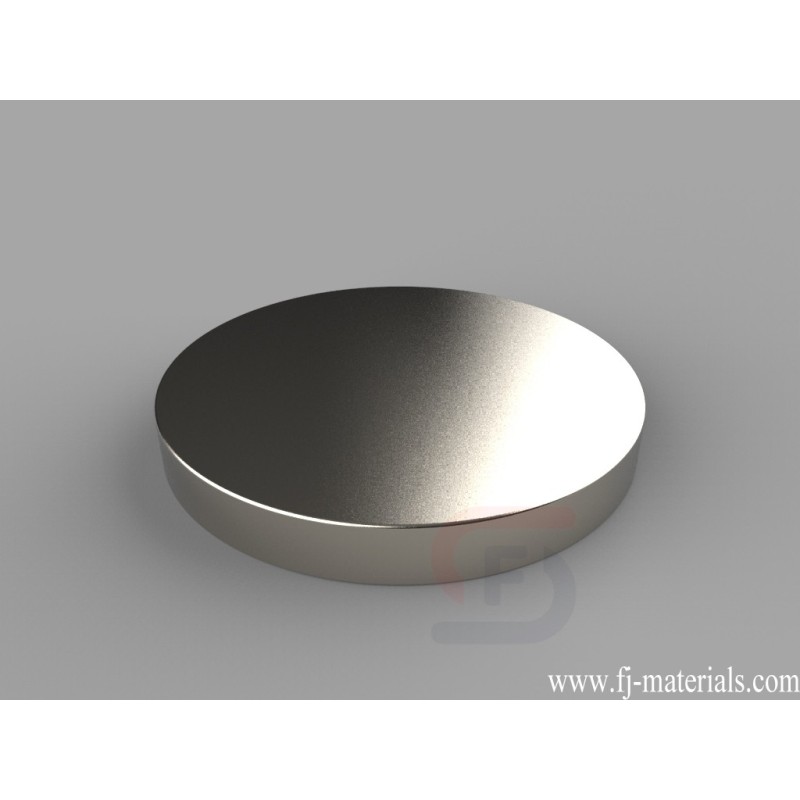

DZ06 Neodymium Magnets, 3 inch dia. x 3/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" dia. x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 100.76 lbs.
DZ06 Neodymium Magnet's dimesion is 3" dia. x 3/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DZ06 Neodymium Magnets, 3 inch dia. x 3/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" dia. x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 100.76 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DZ06
Data sheet
- Item Number
- DZ06
- Material
- NdFeB
- Grade
- N42
- Size
- 3" dia. x 3/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 325.7812 g
- Pull Force
- 100.76 lbs
- Diameter
- H. 50.8-254mm
- Thickness
- C. 6.35-9.53mm
DZ06 Neodymium Magnets, 3 inch dia. x 3/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" dia. x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 100.76 lbs.
