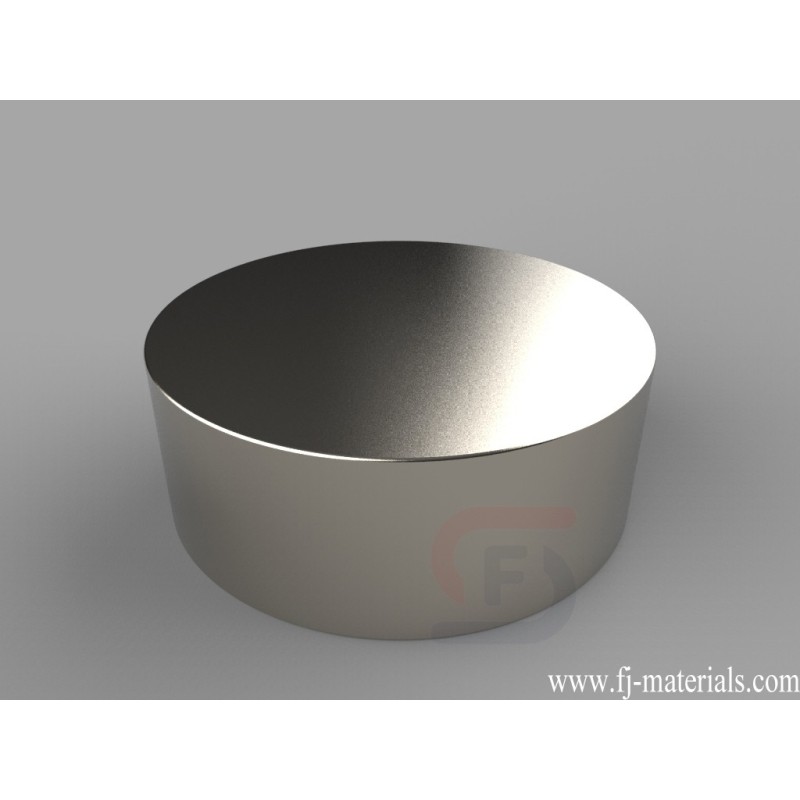

3 dia. x 1 1/8 inch thick Round Disc Magnets | DZ0X2
DZ0X2 Neodymium Magnets, 3 inch dia. x 1 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" dia. x 1 1/8" thick, Thru Thickness magnetized. Pull force is approximately 302.27 lbs.
DZ0X2 Neodymium Magnet's dimesion is 3" dia. x 1 1/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DZ0X2 Neodymium Magnets, 3 inch dia. x 1 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" dia. x 1 1/8" thick, Thru Thickness magnetized. Pull force is approximately 302.27 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DZ0X2
Data sheet
- Item Number
- DZ0X2
- Material
- NdFeB
- Grade
- N42
- Size
- 3" dia. x 1 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 977.3437 g
- Pull Force
- 302.27 lbs
- Diameter
- H. 50.8-254mm
- Thickness
- G. 25.4-50.8mm
DZ0X2 Neodymium Magnets, 3 inch dia. x 1 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" dia. x 1 1/8" thick, Thru Thickness magnetized. Pull force is approximately 302.27 lbs.
