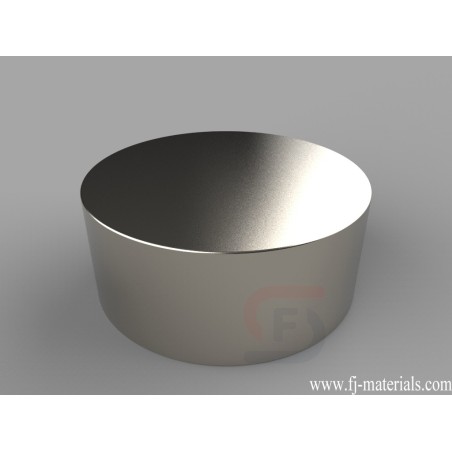

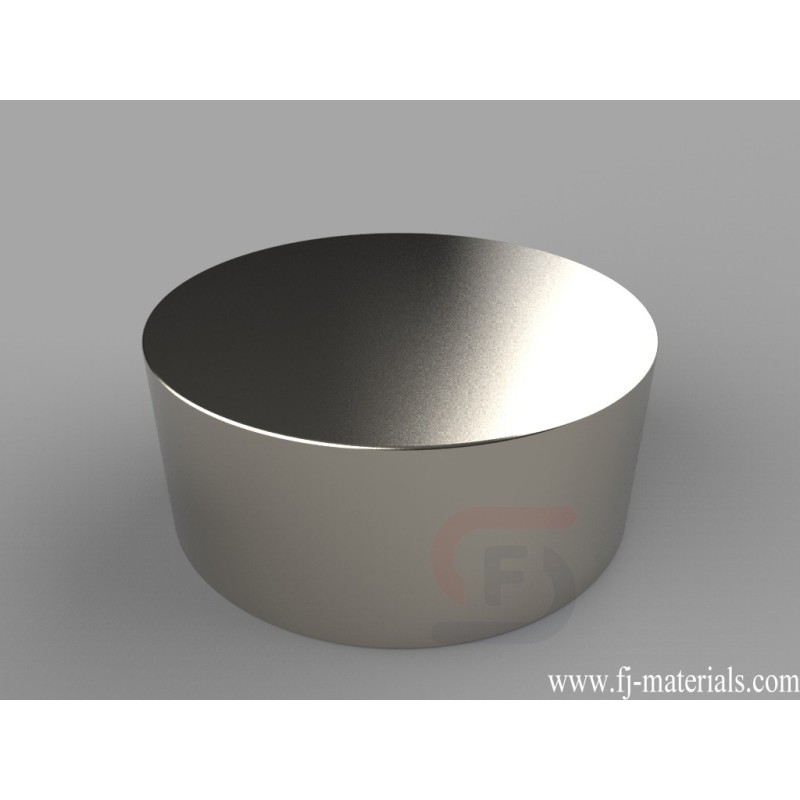

3 dia. x 1 1/4 inch thick Round Disc Magnets | DZ0X4
DZ0X4 Neodymium Magnets, 3 inch dia. x 1 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" dia. x 1 1/4" thick, Thru Thickness magnetized. Pull force is approximately 335.86 lbs.
DZ0X4 Neodymium Magnet's dimesion is 3" dia. x 1 1/4" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DZ0X4 Neodymium Magnets, 3 inch dia. x 1 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" dia. x 1 1/4" thick, Thru Thickness magnetized. Pull force is approximately 335.86 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DZ0X4
Data sheet
- Item Number
- DZ0X4
- Material
- NdFeB
- Grade
- N42
- Size
- 3" dia. x 1 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1085.9374 g
- Pull Force
- 335.86 lbs
- Diameter
- H. 50.8-254mm
- Thickness
- G. 25.4-50.8mm
DZ0X4 Neodymium Magnets, 3 inch dia. x 1 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" dia. x 1 1/4" thick, Thru Thickness magnetized. Pull force is approximately 335.86 lbs.
