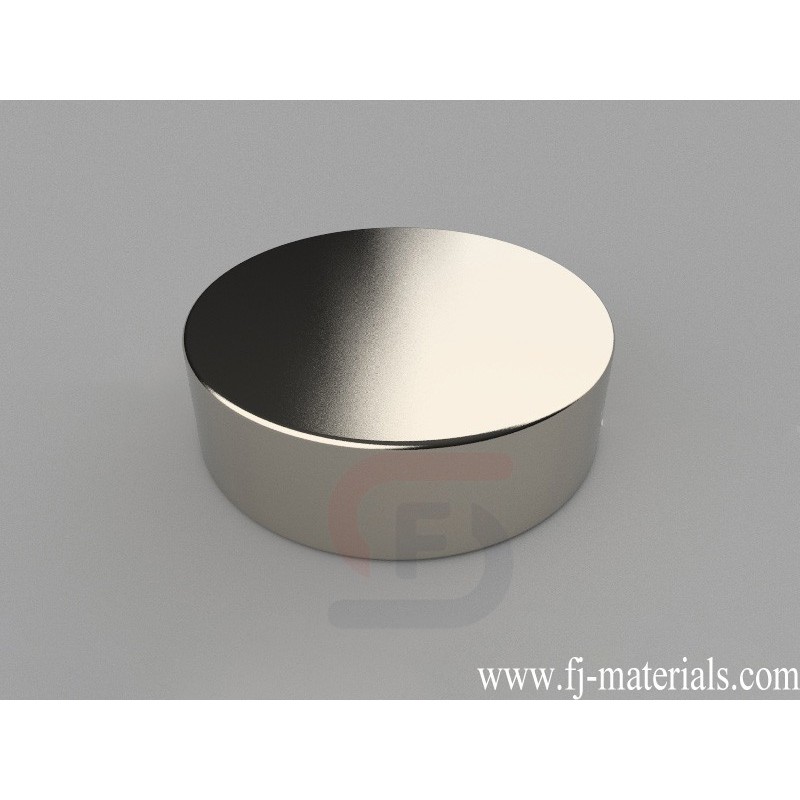

100mm dia. x 30mm thick Round Disc Magnets | D100x30mm
D100x30mm Neodymium Magnet, 100 x 30mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 100mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 416.36 lbs (189.25kg).
D100x30mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 100mm dia. x 30mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 416.36 lbs (189.25kg). Magnetization direction: Axial (Poles on Flat Ends)
D100x30mm Neodymium Magnet, 100 x 30mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 100mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 416.36 lbs (189.25kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D100x30mm
Data sheet
- Item Number
- D100x30mm
- Material
- NdFeB
- Grade
- N42
- Size
- 100mm dia. x 30mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1767.146g
- Pull Force
- 416.36 lbs (189.25kg)
- Diameter
- H. 50.8-254mm
- Thickness
- G. 25.4-50.8mm
D100x30mm Neodymium Magnet, 100 x 30mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 100mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 416.36 lbs (189.25kg).
