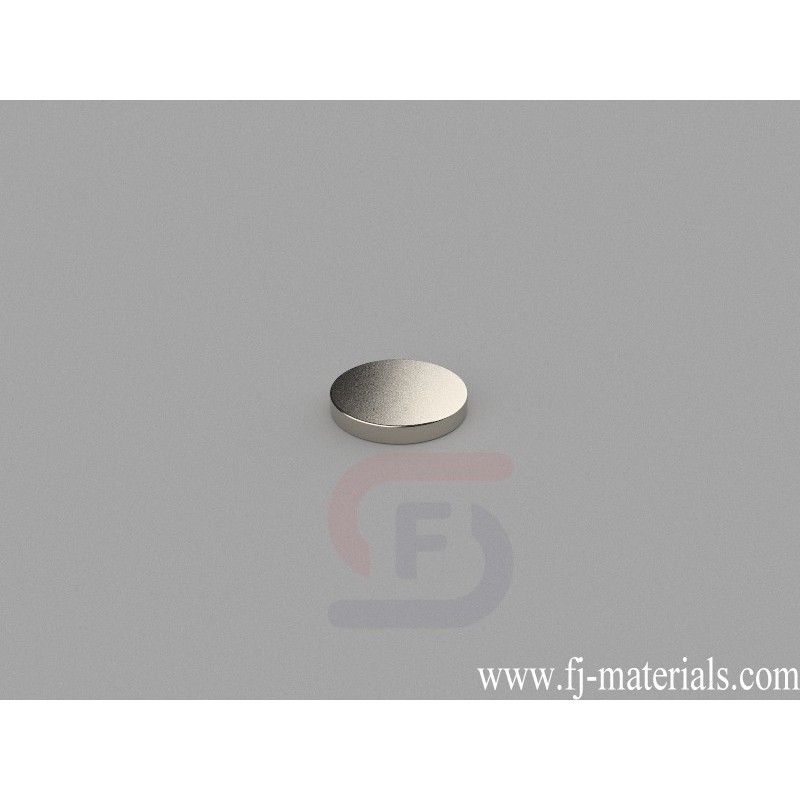

10mm dia. x 1.5mm thick Round Disc Magnets | D10x1.5mm
D10x1.5mm Neodymium Magnet, 10 x 1.5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10mm dia. x 1.5mm thick, Axial magnetized. Pull force is approximately 2.08 lbs (0.95kg).
D10x1.5mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 10mm dia. x 1.5mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 2.08 lbs (0.95kg). Magnetization direction: Axial (Poles on Flat Ends)
D10x1.5mm Neodymium Magnet, 10 x 1.5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10mm dia. x 1.5mm thick, Axial magnetized. Pull force is approximately 2.08 lbs (0.95kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D10x1.5mm
Data sheet
- Item Number
- D10x1.5mm
- Material
- NdFeB
- Grade
- N42
- Size
- 10mm dia. x 1.5mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.884g
- Pull Force
- 2.08 lbs (0.95kg)
- Diameter
- D. 9.53-12.7mm
- Thickness
- A. 0.00-3.18mm
D10x1.5mm Neodymium Magnet, 10 x 1.5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10mm dia. x 1.5mm thick, Axial magnetized. Pull force is approximately 2.08 lbs (0.95kg).
