12mm dia. x 6mm thick Round Disc Magnets | D12x6mm

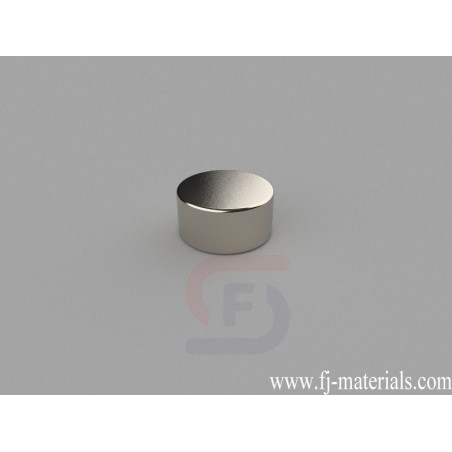

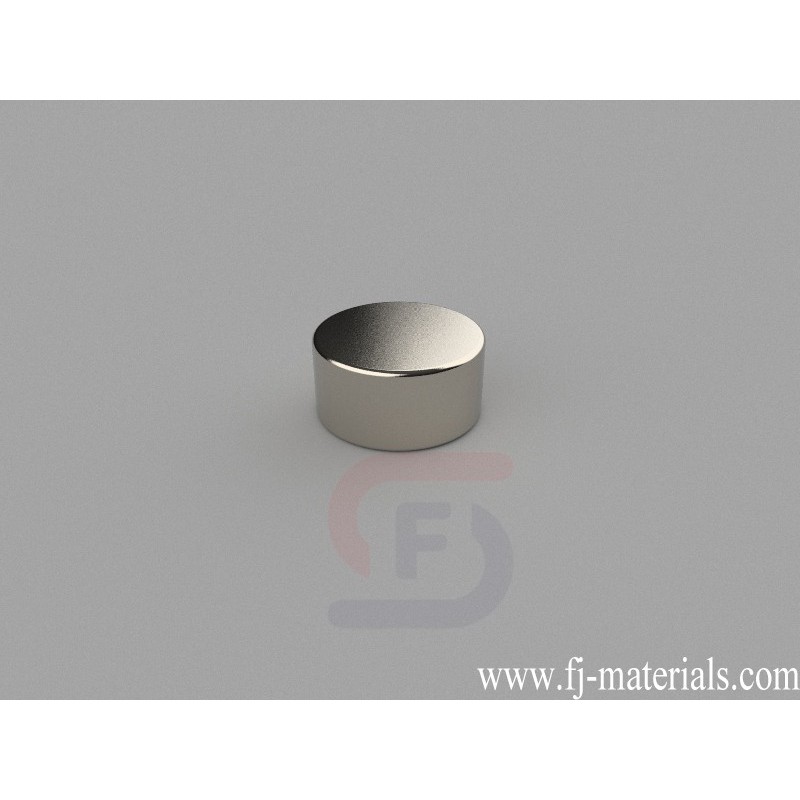

D12x6mm Neodymium Magnet, 12 x 6mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 9.99 lbs (4.54kg).
D12x6mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 12mm dia. x 6mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 9.99 lbs (4.54kg). Magnetization direction: Axial (Poles on Flat Ends)
D12x6mm Neodymium Magnet, 12 x 6mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 9.99 lbs (4.54kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D12x6mm
Data sheet
- Item Number
- D12x6mm
- Material
- NdFeB
- Grade
- N42
- Size
- 12mm dia. x 6mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 5.089g
- Pull Force
- 9.99 lbs (4.54kg)
- Diameter
- D. 9.53-12.7mm
- Thickness
- B. 3.18-6.35mm
D12x6mm Neodymium Magnet, 12 x 6mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 9.99 lbs (4.54kg).
