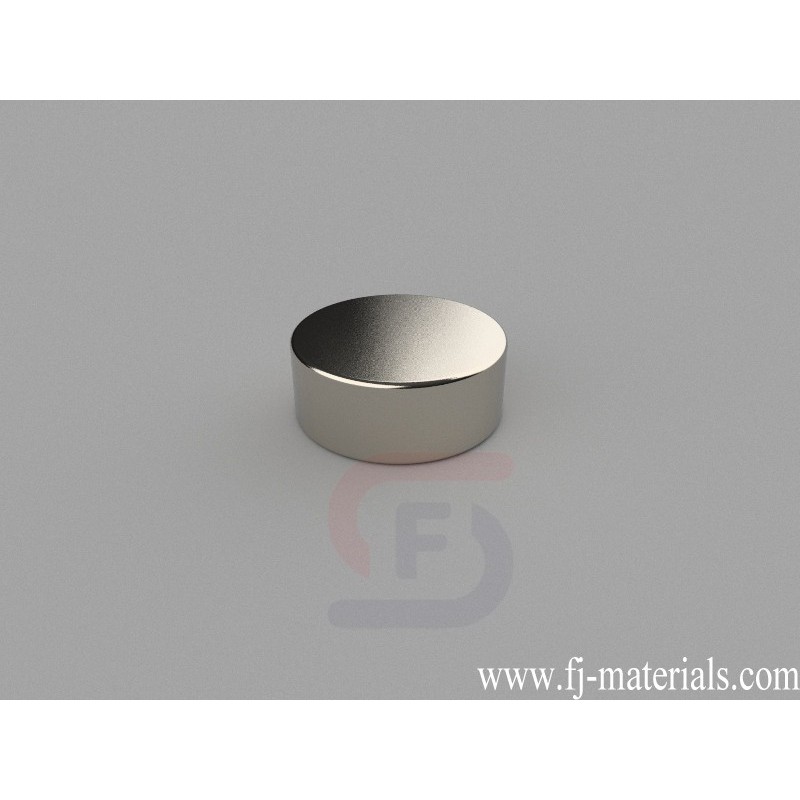

15mm dia. x 6mm thick Round Disc Magnets | D15x6mm
D15x6mm Neodymium Magnet, 15 x 6mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 12.49 lbs (5.68kg).
D15x6mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 15mm dia. x 6mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 12.49 lbs (5.68kg). Magnetization direction: Axial (Poles on Flat Ends)
D15x6mm Neodymium Magnet, 15 x 6mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 12.49 lbs (5.68kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D15x6mm
Data sheet
- Item Number
- D15x6mm
- Material
- NdFeB
- Grade
- N42
- Size
- 15mm dia. x 6mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 7.952g
- Pull Force
- 12.49 lbs (5.68kg)
- Diameter
- E. 12.7-19.05mm
- Thickness
- B. 3.18-6.35mm
D15x6mm Neodymium Magnet, 15 x 6mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 12.49 lbs (5.68kg).
