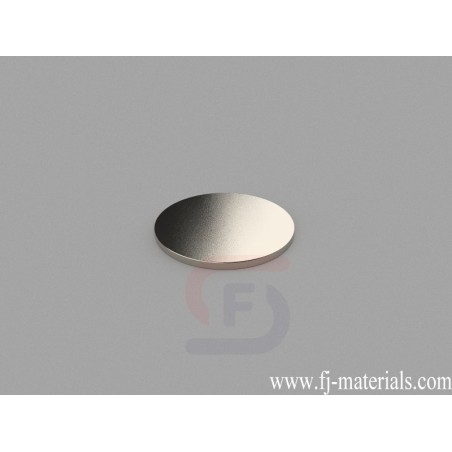

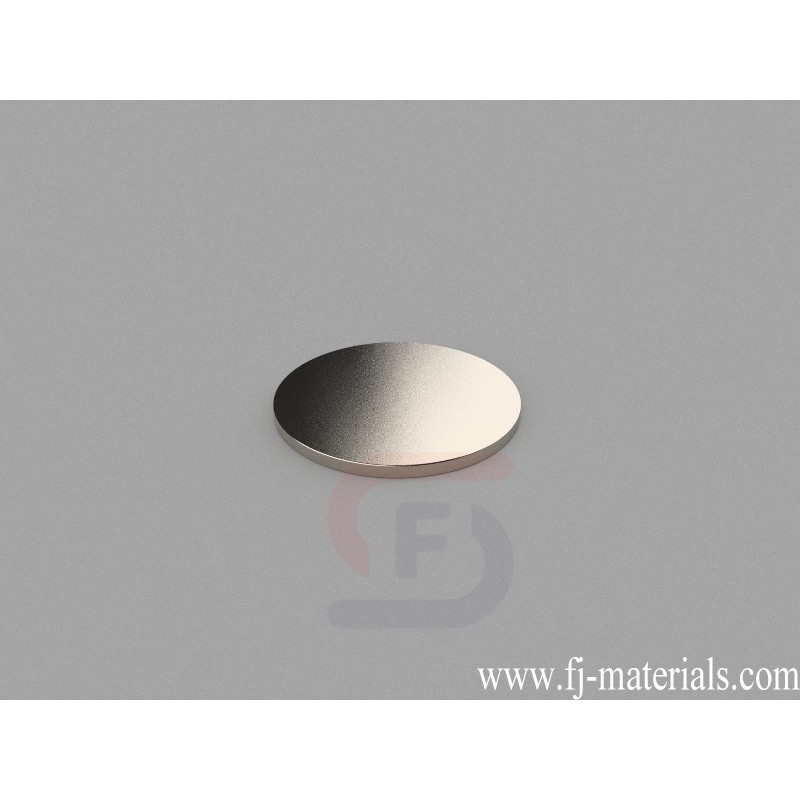

18mm dia. x 1mm thick Round Disc Magnets | D18x1mm
D18x1mm Neodymium Magnet, 18 x 1mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 18mm dia. x 1mm thick, Axial magnetized. Pull force is approximately 2.50 lbs (1.14kg).
D18x1mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 18mm dia. x 1mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 2.50 lbs (1.14kg). Magnetization direction: Axial (Poles on Flat Ends)
D18x1mm Neodymium Magnet, 18 x 1mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 18mm dia. x 1mm thick, Axial magnetized. Pull force is approximately 2.50 lbs (1.14kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D18x1mm
Data sheet
- Item Number
- D18x1mm
- Material
- NdFeB
- Grade
- N42
- Size
- 18mm dia. x 1mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.909g
- Pull Force
- 2.50 lbs (1.14kg)
- Diameter
- E. 12.7-19.05mm
- Thickness
- A. 0.00-3.18mm
D18x1mm Neodymium Magnet, 18 x 1mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 18mm dia. x 1mm thick, Axial magnetized. Pull force is approximately 2.50 lbs (1.14kg).
