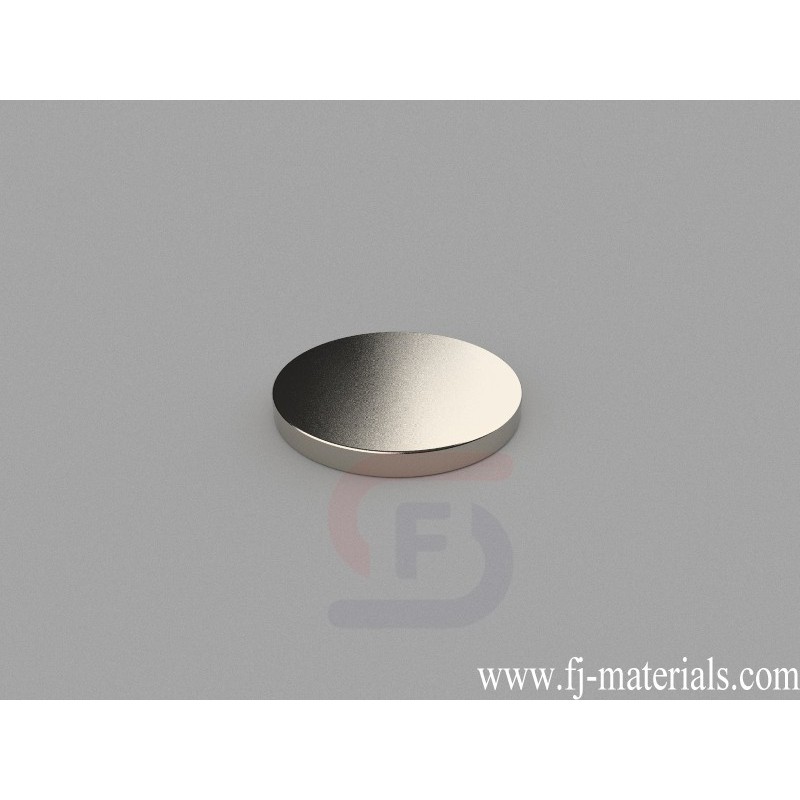

18mm dia. x 2mm thick Round Disc Magnets | D18x2mm

D18x2mm Neodymium Magnet, 18 x 2mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 18mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 5.00 lbs (2.27kg).

D18x2mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 18mm dia. x 2mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 5.00 lbs (2.27kg). Magnetization direction: Axial (Poles on Flat Ends)

D18x2mm Neodymium Magnet, 18 x 2mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 18mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 5.00 lbs (2.27kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D18x2mm

Data sheet

Item Number
D18x2mm
Material
NdFeB
Grade
N42
Size
18mm dia. x 2mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
3.817g
Pull Force
5.00 lbs (2.27kg)
Diameter
E. 12.7-19.05mm
Thickness
A. 0.00-3.18mm
