20mm dia. x 4mm thick Round Disc Magnets | D20x4mm

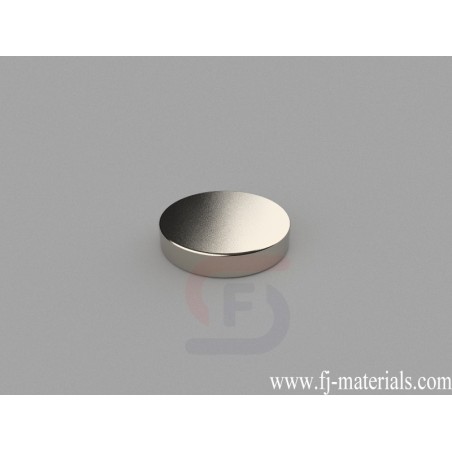

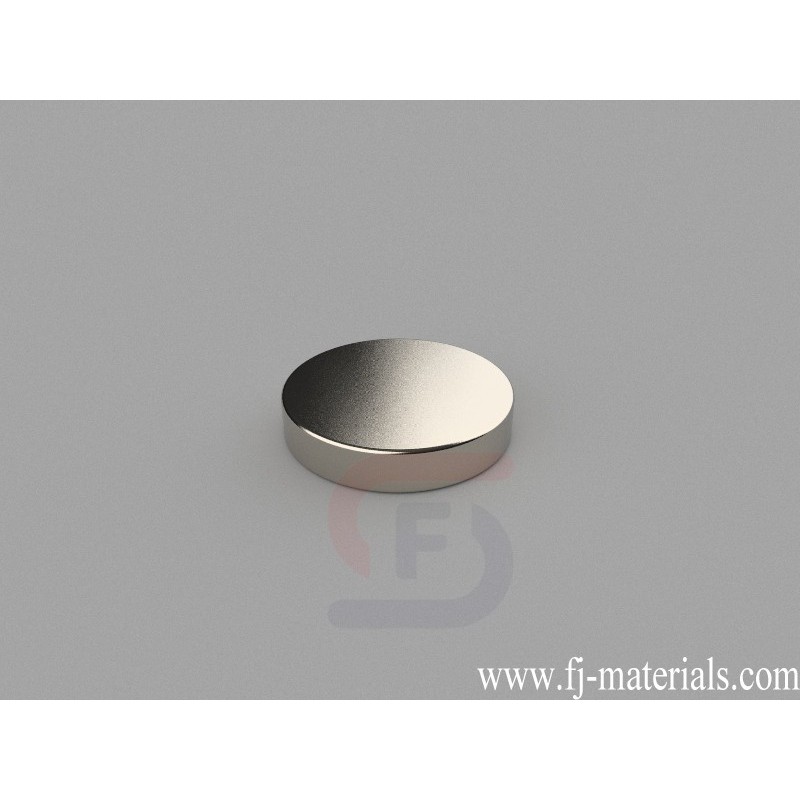

D20x4mm Neodymium Magnet, 20 x 4mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 20mm dia. x 4mm thick, Axial magnetized. Pull force is approximately 11.10 lbs (5.05kg).
D20x4mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 20mm dia. x 4mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 11.10 lbs (5.05kg). Magnetization direction: Axial (Poles on Flat Ends)
D20x4mm Neodymium Magnet, 20 x 4mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 20mm dia. x 4mm thick, Axial magnetized. Pull force is approximately 11.10 lbs (5.05kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D20x4mm
Data sheet
- Item Number
- D20x4mm
- Material
- NdFeB
- Grade
- N42
- Size
- 20mm dia. x 4mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 9.425g
- Pull Force
- 11.10 lbs (5.05kg)
- Diameter
- F. 19.05-25.4mm
- Thickness
- B. 3.18-6.35mm
D20x4mm Neodymium Magnet, 20 x 4mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 20mm dia. x 4mm thick, Axial magnetized. Pull force is approximately 11.10 lbs (5.05kg).
