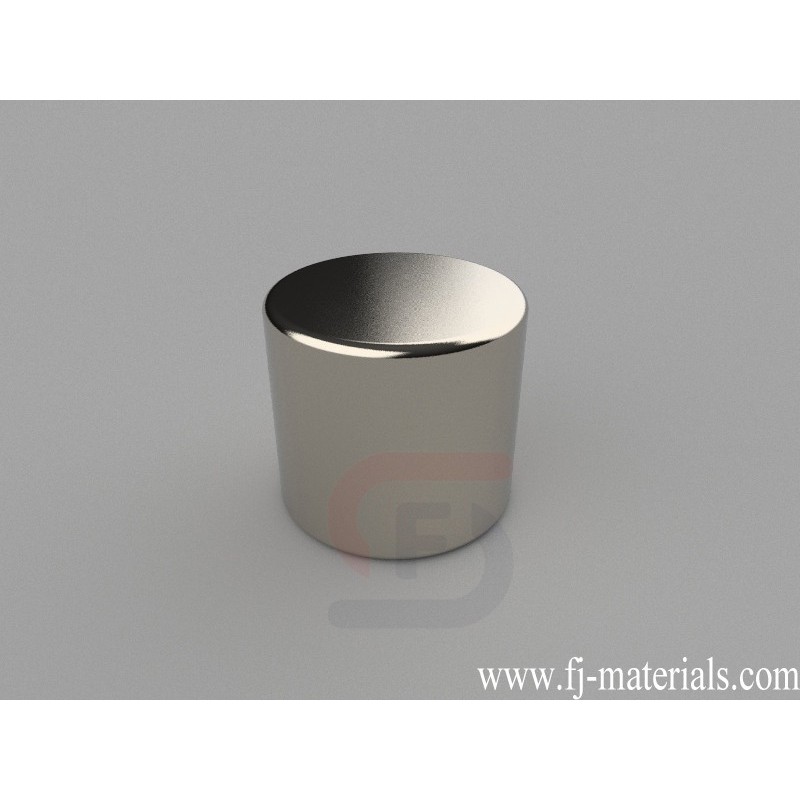

22mm dia. x 20mm thick Round Disc Magnets | D22x20mm
D22x20mm Neodymium Magnet, 22 x 20mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 22mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 61.07 lbs (27.76kg).
D22x20mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 22mm dia. x 20mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 61.07 lbs (27.76kg). Magnetization direction: Axial (Poles on Flat Ends)
D22x20mm Neodymium Magnet, 22 x 20mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 22mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 61.07 lbs (27.76kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D22x20mm
Data sheet
- Item Number
- D22x20mm
- Material
- NdFeB
- Grade
- N42
- Size
- 22mm dia. x 20mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 57.020g
- Pull Force
- 61.07 lbs (27.76kg)
- Diameter
- F. 19.05-25.4mm
- Thickness
- F. 19.05-25.4mm
D22x20mm Neodymium Magnet, 22 x 20mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 22mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 61.07 lbs (27.76kg).
