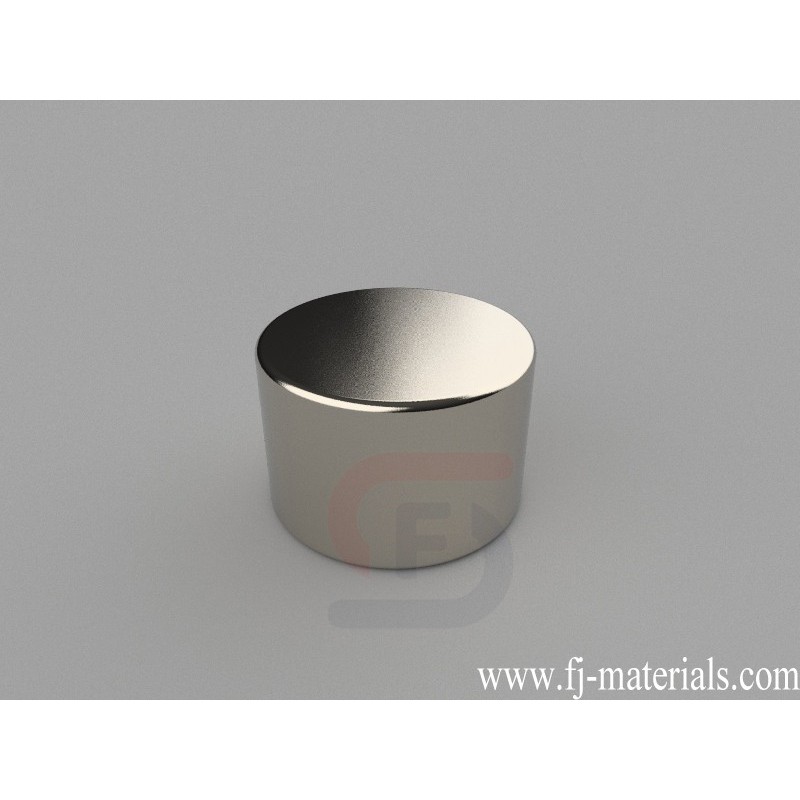

24mm dia. x 16mm thick Round Disc Magnets | D24x16mm
D24x16mm Neodymium Magnet, 24 x 16mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 24mm dia. x 16mm thick, Axial magnetized. Pull force is approximately 53.29 lbs (24.22kg).
D24x16mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 24mm dia. x 16mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 53.29 lbs (24.22kg). Magnetization direction: Axial (Poles on Flat Ends)
D24x16mm Neodymium Magnet, 24 x 16mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 24mm dia. x 16mm thick, Axial magnetized. Pull force is approximately 53.29 lbs (24.22kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D24x16mm
Data sheet
- Item Number
- D24x16mm
- Material
- NdFeB
- Grade
- N42
- Size
- 24mm dia. x 16mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 54.287g
- Pull Force
- 53.29 lbs (24.22kg)
- Diameter
- F. 19.05-25.4mm
- Thickness
- E. 12.7-19.05mm
D24x16mm Neodymium Magnet, 24 x 16mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 24mm dia. x 16mm thick, Axial magnetized. Pull force is approximately 53.29 lbs (24.22kg).
