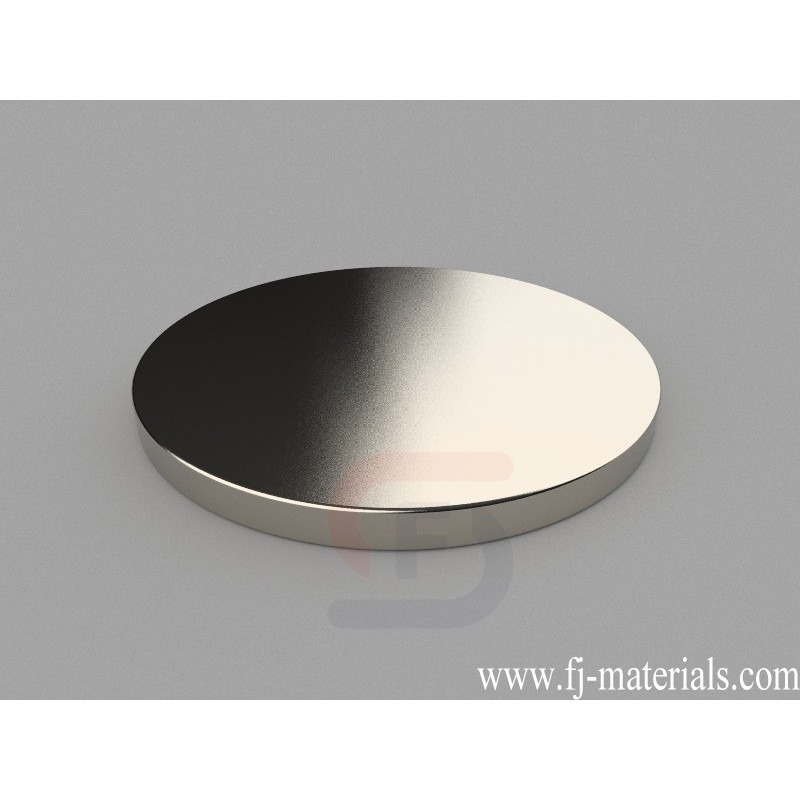

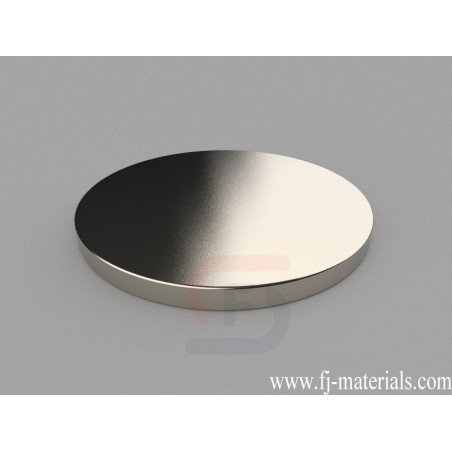

40mm dia. x 3mm thick Round Disc Magnets | D40x3mm
D40x3mm Neodymium Magnet, 40 x 3mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 40mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 16.65 lbs (7.57kg).
D40x3mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 40mm dia. x 3mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 16.65 lbs (7.57kg). Magnetization direction: Axial (Poles on Flat Ends)
D40x3mm Neodymium Magnet, 40 x 3mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 40mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 16.65 lbs (7.57kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D40x3mm
Data sheet
- Item Number
- D40x3mm
- Material
- NdFeB
- Grade
- N42
- Size
- 40mm dia. x 3mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 28.274g
- Pull Force
- 16.65 lbs (7.57kg)
- Diameter
- G. 25.4-50.8mm
- Thickness
- A. 0.00-3.18mm
D40x3mm Neodymium Magnet, 40 x 3mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 40mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 16.65 lbs (7.57kg).
