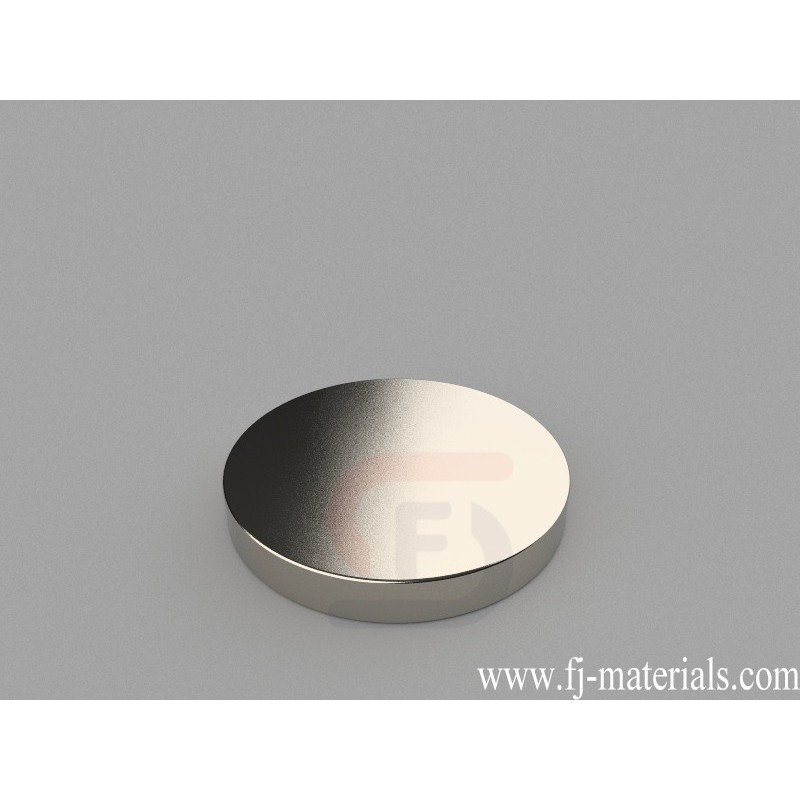

43mm dia. x 6mm thick Round Disc Magnets | D43x6mm
D43x6mm Neodymium Magnet, 43 x 6mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 43mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 35.81 lbs (16.28kg).
D43x6mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 43mm dia. x 6mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 35.81 lbs (16.28kg). Magnetization direction: Axial (Poles on Flat Ends)
D43x6mm Neodymium Magnet, 43 x 6mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 43mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 35.81 lbs (16.28kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D43x6mm
Data sheet
- Item Number
- D43x6mm
- Material
- NdFeB
- Grade
- N42
- Size
- 43mm dia. x 6mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 65.349g
- Pull Force
- 35.81 lbs (16.28kg)
- Diameter
- G. 25.4-50.8mm
- Thickness
- B. 3.18-6.35mm
D43x6mm Neodymium Magnet, 43 x 6mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 43mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 35.81 lbs (16.28kg).
