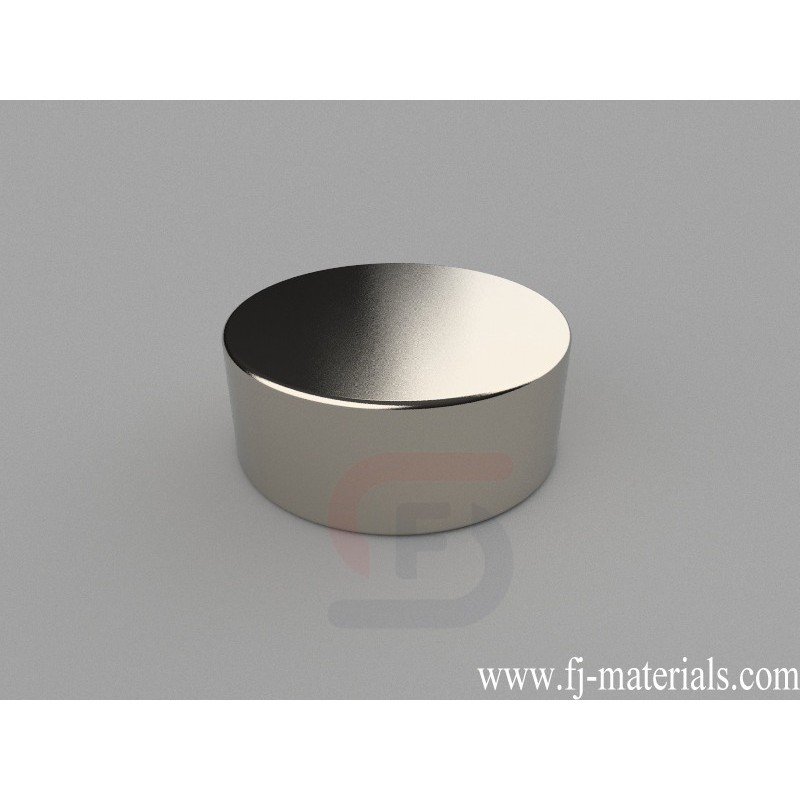

50mm dia. x 20mm thick Round Disc Magnets | D50x20mm
D50x20mm Neodymium Magnet, 50 x 20mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 138.79 lbs (63.08kg).
D50x20mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 50mm dia. x 20mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 138.79 lbs (63.08kg). Magnetization direction: Axial (Poles on Flat Ends)
D50x20mm Neodymium Magnet, 50 x 20mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 138.79 lbs (63.08kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D50x20mm
Data sheet
- Item Number
- D50x20mm
- Material
- NdFeB
- Grade
- N42
- Size
- 50mm dia. x 20mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 294.524g
- Pull Force
- 138.79 lbs (63.08kg)
- Diameter
- G. 25.4-50.8mm
- Thickness
- F. 19.05-25.4mm
D50x20mm Neodymium Magnet, 50 x 20mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 50mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 138.79 lbs (63.08kg).
