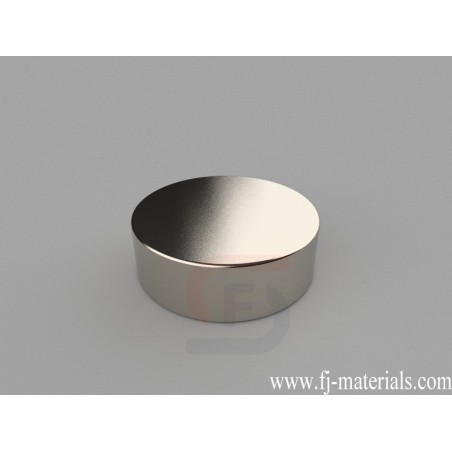

60mm dia. x 20mm thick Round Disc Magnets | D60x20mm
D60x20mm Neodymium Magnet, 60 x 20mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 60mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 166.54 lbs (75.70kg).
D60x20mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 60mm dia. x 20mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 166.54 lbs (75.70kg). Magnetization direction: Axial (Poles on Flat Ends)
D60x20mm Neodymium Magnet, 60 x 20mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 60mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 166.54 lbs (75.70kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D60x20mm
Data sheet
- Item Number
- D60x20mm
- Material
- NdFeB
- Grade
- N42
- Size
- 60mm dia. x 20mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 424.115g
- Pull Force
- 166.54 lbs (75.70kg)
- Diameter
- H. 50.8-254mm
- Thickness
- F. 19.05-25.4mm
D60x20mm Neodymium Magnet, 60 x 20mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 60mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 166.54 lbs (75.70kg).
