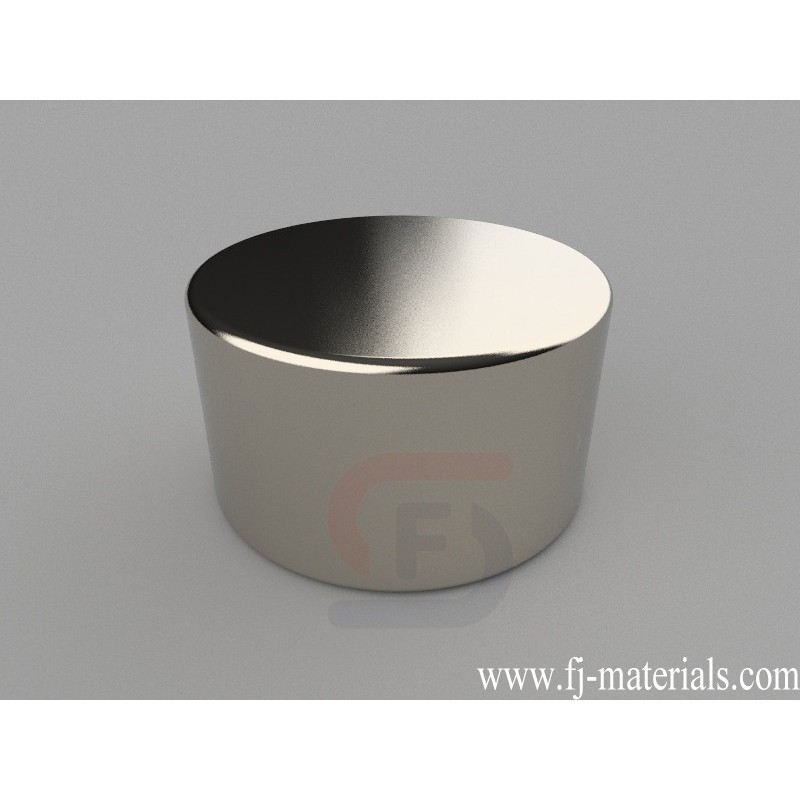

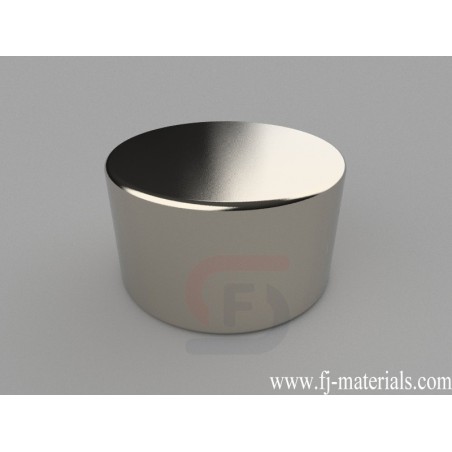

70mm dia. x 40mm thick Round Disc Magnets | D70x40mm
D70x40mm Neodymium Magnet, 70 x 40mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 70mm dia. x 40mm thick, Axial magnetized. Pull force is approximately 388.60 lbs (176.64kg).
D70x40mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 70mm dia. x 40mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 388.60 lbs (176.64kg). Magnetization direction: Axial (Poles on Flat Ends)
D70x40mm Neodymium Magnet, 70 x 40mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 70mm dia. x 40mm thick, Axial magnetized. Pull force is approximately 388.60 lbs (176.64kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D70x40mm
Data sheet
- Item Number
- D70x40mm
- Material
- NdFeB
- Grade
- N42
- Size
- 70mm dia. x 40mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1154.535g
- Pull Force
- 388.60 lbs (176.64kg)
- Diameter
- H. 50.8-254mm
- Thickness
- G. 25.4-50.8mm
D70x40mm Neodymium Magnet, 70 x 40mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 70mm dia. x 40mm thick, Axial magnetized. Pull force is approximately 388.60 lbs (176.64kg).
