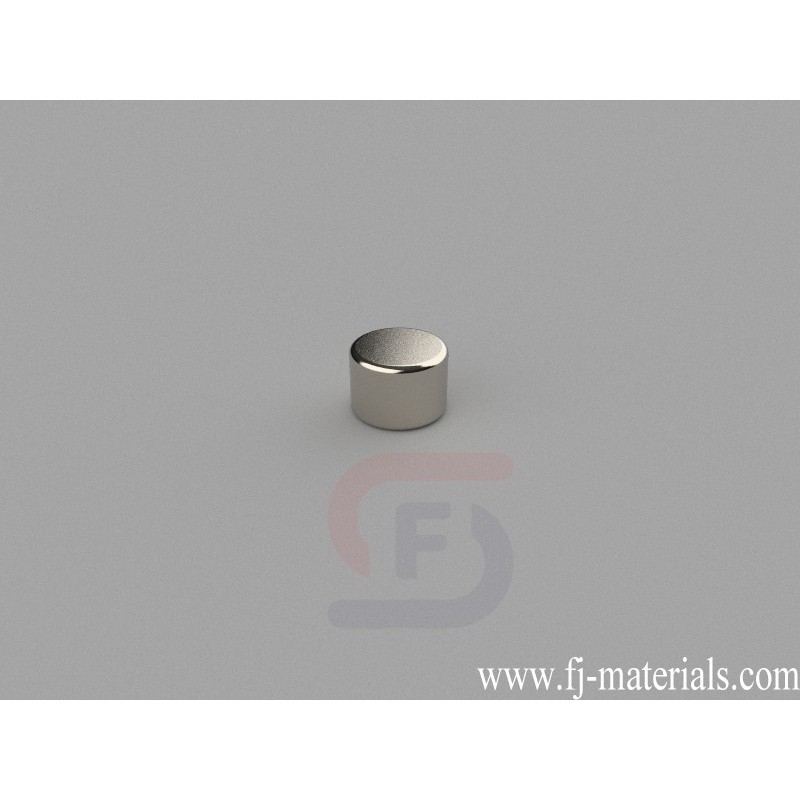

7mm dia. x 5mm thick Round Disc Magnets | D7x5mm
D7x5mm Neodymium Magnet, 7 x 5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 4.86 lbs (2.21kg).
D7x5mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 7mm dia. x 5mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 4.86 lbs (2.21kg). Magnetization direction: Axial (Poles on Flat Ends)
D7x5mm Neodymium Magnet, 7 x 5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 4.86 lbs (2.21kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D7x5mm
Data sheet
- Item Number
- D7x5mm
- Material
- NdFeB
- Grade
- N42
- Size
- 7mm dia. x 5mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.443g
- Pull Force
- 4.86 lbs (2.21kg)
- Diameter
- C. 6.35-9.53mm
- Thickness
- B. 3.18-6.35mm
D7x5mm Neodymium Magnet, 7 x 5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 4.86 lbs (2.21kg).
