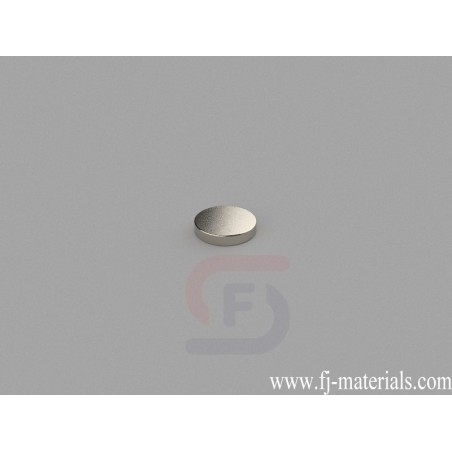

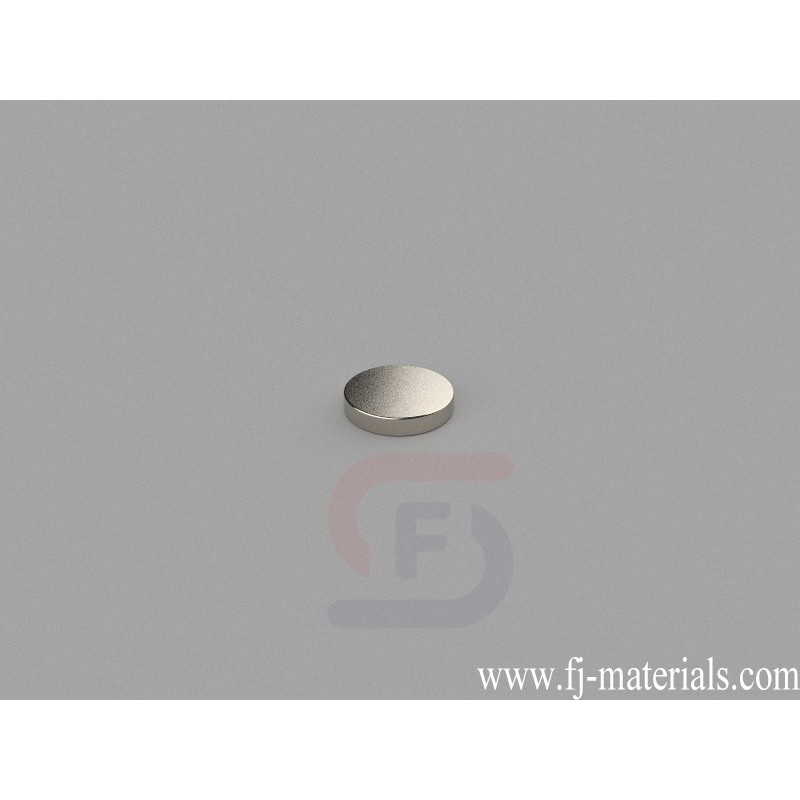

8mm dia. x 1.5mm thick Round Disc Magnets | D8x1.5mm
D8x1.5mm Neodymium Magnet, 8 x 1.5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 1.5mm thick, Axial magnetized. Pull force is approximately 1.67 lbs (0.76kg).
D8x1.5mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 8mm dia. x 1.5mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 1.67 lbs (0.76kg). Magnetization direction: Axial (Poles on Flat Ends)
D8x1.5mm Neodymium Magnet, 8 x 1.5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 1.5mm thick, Axial magnetized. Pull force is approximately 1.67 lbs (0.76kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D8x1.5mm
Data sheet
- Item Number
- D8x1.5mm
- Material
- NdFeB
- Grade
- N42
- Size
- 8mm dia. x 1.5mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.565g
- Pull Force
- 1.67 lbs (0.76kg)
- Diameter
- C. 6.35-9.53mm
- Thickness
- A. 0.00-3.18mm
D8x1.5mm Neodymium Magnet, 8 x 1.5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 1.5mm thick, Axial magnetized. Pull force is approximately 1.67 lbs (0.76kg).
