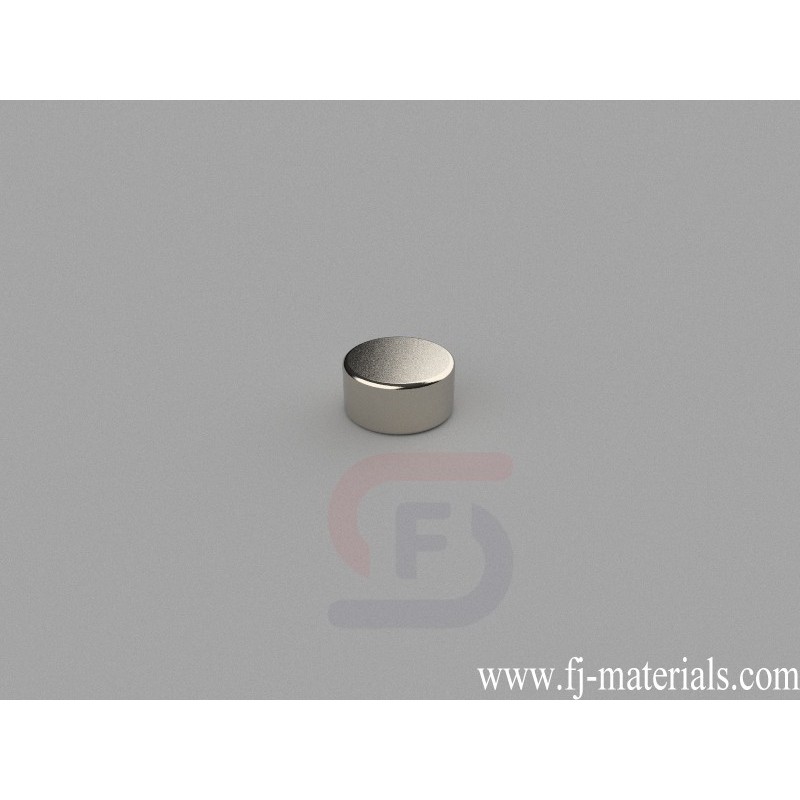

8mm dia. x 4mm thick Round Disc Magnets | D8x4mm
D8x4mm Neodymium Magnet, 8 x 4mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 4mm thick, Axial magnetized. Pull force is approximately 4.44 lbs (2.02kg).
D8x4mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 8mm dia. x 4mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 4.44 lbs (2.02kg). Magnetization direction: Axial (Poles on Flat Ends)
D8x4mm Neodymium Magnet, 8 x 4mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 4mm thick, Axial magnetized. Pull force is approximately 4.44 lbs (2.02kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D8x4mm
Data sheet
- Item Number
- D8x4mm
- Material
- NdFeB
- Grade
- N42
- Size
- 8mm dia. x 4mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.508g
- Pull Force
- 4.44 lbs (2.02kg)
- Diameter
- C. 6.35-9.53mm
- Thickness
- B. 3.18-6.35mm
D8x4mm Neodymium Magnet, 8 x 4mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 4mm thick, Axial magnetized. Pull force is approximately 4.44 lbs (2.02kg).
