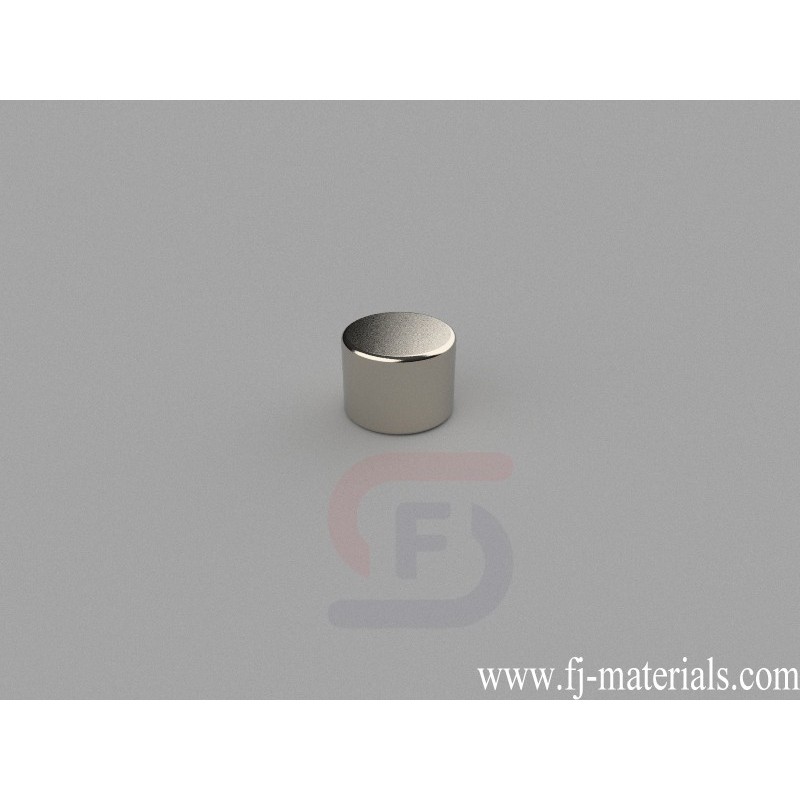

8mm dia. x 6mm thick Round Disc Magnets | D8x6mm
D8x6mm Neodymium Magnet, 8 x 6mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 6.66 lbs (3.03kg).
D8x6mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 8mm dia. x 6mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 6.66 lbs (3.03kg). Magnetization direction: Axial (Poles on Flat Ends)
D8x6mm Neodymium Magnet, 8 x 6mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 6.66 lbs (3.03kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D8x6mm
Data sheet
- Item Number
- D8x6mm
- Material
- NdFeB
- Grade
- N42
- Size
- 8mm dia. x 6mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 2.262g
- Pull Force
- 6.66 lbs (3.03kg)
- Diameter
- C. 6.35-9.53mm
- Thickness
- B. 3.18-6.35mm
D8x6mm Neodymium Magnet, 8 x 6mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 8mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 6.66 lbs (3.03kg).
