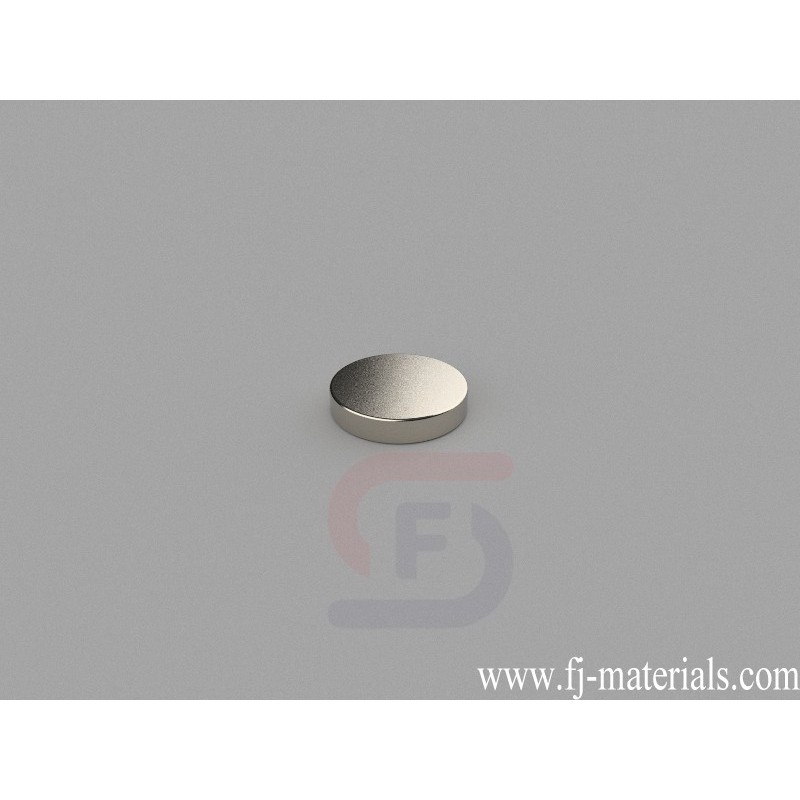

10mm dia. x 2mm thick Round Disc Magnets | D-D10H2-N50
D-D10H2-N50 Neodymium Magnet, 10x2mm Disc Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 10mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 3.21 lbs (1.46kg).
D-D10H2-N50 Neodymium Disc Magnets is made from high perfermance N50 NdFeB. The dimesion is 10mm dia. x 2mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 3.21 lbs (1.46kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D10H2-N50 Neodymium Magnet, 10x2mm Disc Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 10mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 3.21 lbs (1.46kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D10H2-N50
Data sheet
- Item Number
- D-D10H2-N50
- Material
- NdFeB
- Grade
- N50
- Size
- 10mm dia. x 2mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.178g
- Pull Force
- 3.21 lbs (1.46kg)
- Diameter
- D. 9.53-12.7mm
- Thickness
- A. 0.00-3.18mm
D-D10H2-N50 Neodymium Magnet, 10x2mm Disc Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 10mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 3.21 lbs (1.46kg).
