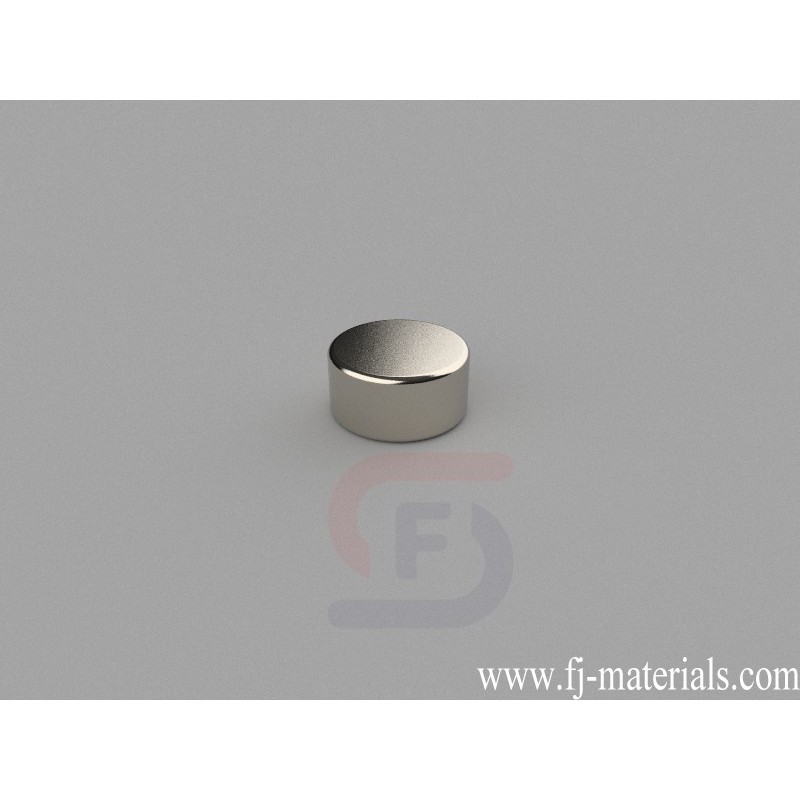

10mm dia. x 5mm thick with adhesive backing Round Disc Magnets | D-D10H5-N38AD
D-D10H5-N38AD Neodymium Magnet, 10x5mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 10mm dia. x 5mm thick with adhesive backing, Axial magnetized. Pull force is approximately 6.32 lbs (2.87kg).
D-D10H5-N38AD Neodymium Disc Magnets is made from high perfermance N38 NdFeB. The dimesion is 10mm dia. x 5mm thick with adhesive backing, Ni-Cu-Ni (Nickel) coating. Pull force: 6.32 lbs (2.87kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D10H5-N38AD Neodymium Magnet, 10x5mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 10mm dia. x 5mm thick with adhesive backing, Axial magnetized. Pull force is approximately 6.32 lbs (2.87kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D10H5-N38AD
Data sheet
- Item Number
- D-D10H5-N38AD
- Material
- NdFeB
- Grade
- N38
- Size
- 10mm dia. x 5mm thick with adhesive backing
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 2.945g
- Pull Force
- 6.32 lbs (2.87kg)
- Diameter
- D. 9.53-12.7mm
- Thickness
- B. 3.18-6.35mm
D-D10H5-N38AD Neodymium Magnet, 10x5mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 10mm dia. x 5mm thick with adhesive backing, Axial magnetized. Pull force is approximately 6.32 lbs (2.87kg).
