12.7mm dia. x 6.35mm thick Plastic Coated Magnets | D-D12.7H6.35/Y

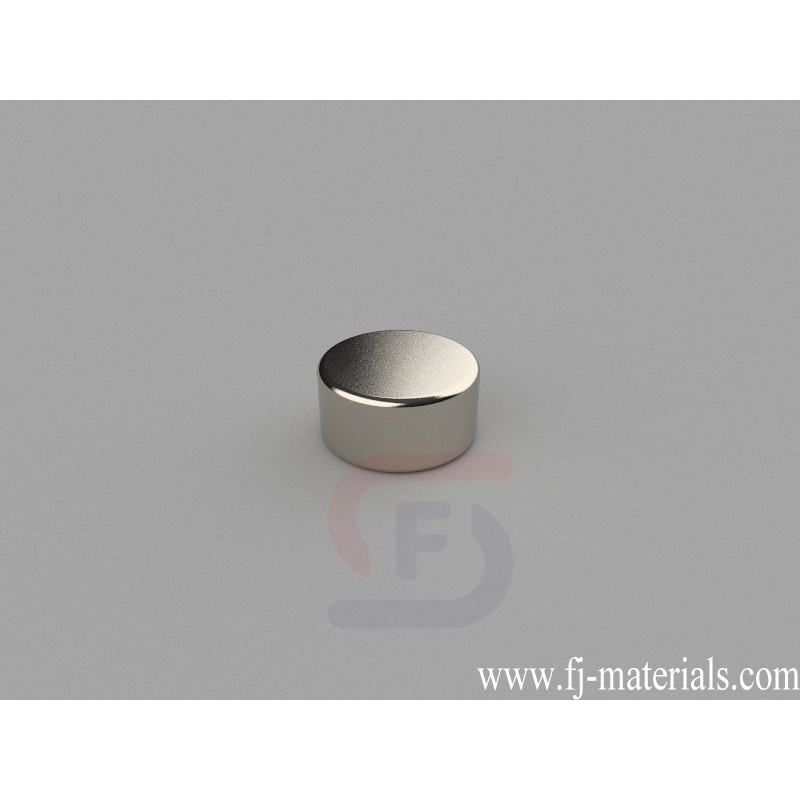

D-D12.7H6.35/Y Neodymium Magnet, 12.7x6.35mm Disc Magnet is made of Grade N35 NdFeB, Plastic Coated. The dimension is 12.7mm dia. x 6.35mm thick, Axial magnetized. Pull force is approximately 9.40 lbs (4.27kg).
D-D12.7H6.35/Y Neodymium Disc Magnets is made from high perfermance N35 NdFeB. The dimesion is 12.7mm dia. x 6.35mm thick, TPR Coated - YELLOW coating. Pull force: 9.40 lbs (4.27kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D12.7H6.35/Y Neodymium Magnet, 12.7x6.35mm Disc Magnet is made of Grade N35 NdFeB, Plastic Coated. The dimension is 12.7mm dia. x 6.35mm thick, Axial magnetized. Pull force is approximately 9.40 lbs (4.27kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D12.7H6.35/Y
Data sheet
- Item Number
- D-D12.7H6.35/Y
- Material
- NdFeB
- Grade
- N35
- Size
- 12.7mm dia. x 6.35mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Plastic Coated
- Magnetization Direction
- Axial
- Weight
- 6.033g
- Pull Force
- 9.40 lbs (4.27kg)
- Diameter
- D. 9.53-12.7mm
- Thickness
- B. 3.18-6.35mm
D-D12.7H6.35/Y Neodymium Magnet, 12.7x6.35mm Disc Magnet is made of Grade N35 NdFeB, Plastic Coated. The dimension is 12.7mm dia. x 6.35mm thick, Axial magnetized. Pull force is approximately 9.40 lbs (4.27kg).
