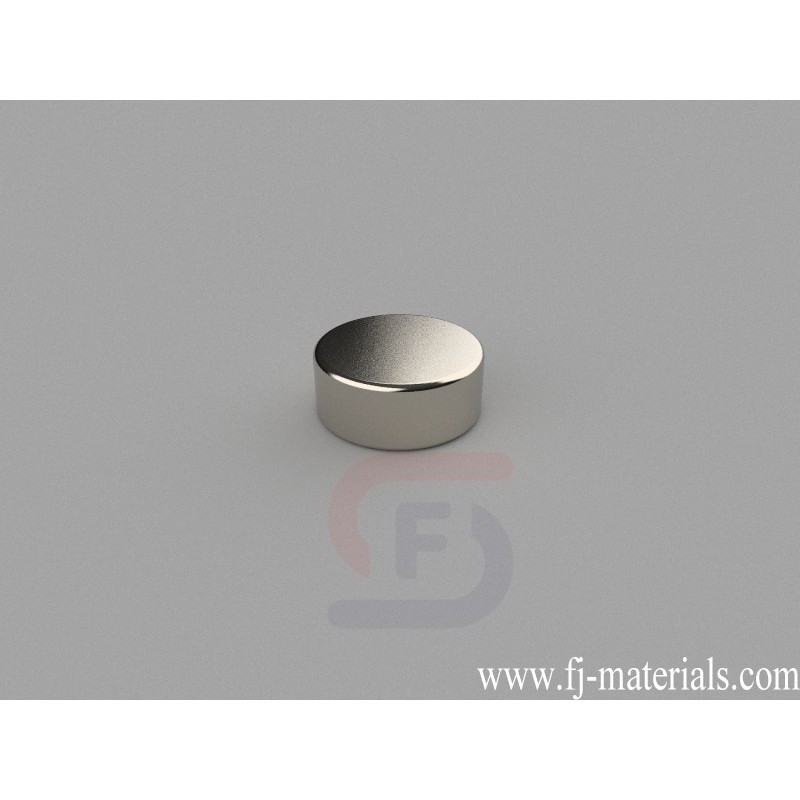

12mm dia. x 5mm thick Round Disc Magnets | D-D12H5-N52
D-D12H5-N52 Neodymium Magnet, 12x5mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 12mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 9.91 lbs (4.50kg).
D-D12H5-N52 Neodymium Disc Magnets is made from high perfermance N52 NdFeB. The dimesion is 12mm dia. x 5mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 9.91 lbs (4.50kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D12H5-N52 Neodymium Magnet, 12x5mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 12mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 9.91 lbs (4.50kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D12H5-N52
Data sheet
- Item Number
- D-D12H5-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 12mm dia. x 5mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 4.241g
- Pull Force
- 9.91 lbs (4.50kg)
- Diameter
- D. 9.53-12.7mm
- Thickness
- B. 3.18-6.35mm
D-D12H5-N52 Neodymium Magnet, 12x5mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 12mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 9.91 lbs (4.50kg).
