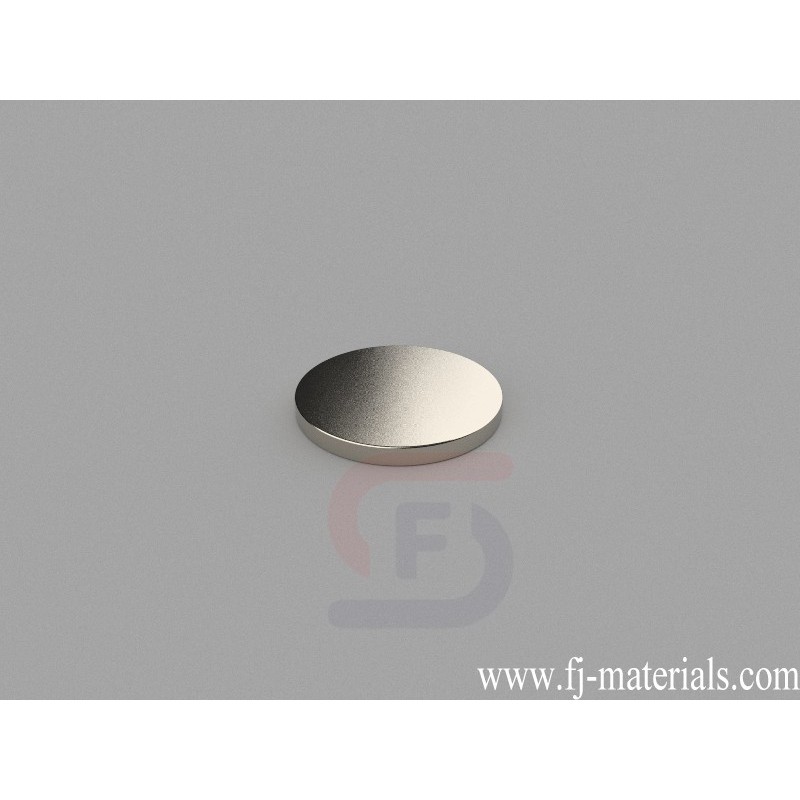

15mm dia. x 1.5mm thick with adhesive backing Round Disc Magnets | D-D15H1.5-N35AD
D-D15H1.5-N35AD Neodymium Magnet, 15x1.5mm Disc Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 15mm dia. x 1.5mm thick with adhesive backing, Axial magnetized. Pull force is approximately 2.62 lbs (1.19kg).
D-D15H1.5-N35AD Neodymium Disc Magnets is made from high perfermance N35 NdFeB. The dimesion is 15mm dia. x 1.5mm thick with adhesive backing, Ni-Cu-Ni (Nickel) coating. Pull force: 2.62 lbs (1.19kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D15H1.5-N35AD Neodymium Magnet, 15x1.5mm Disc Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 15mm dia. x 1.5mm thick with adhesive backing, Axial magnetized. Pull force is approximately 2.62 lbs (1.19kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D15H1.5-N35AD
Data sheet
- Item Number
- D-D15H1.5-N35AD
- Material
- NdFeB
- Grade
- N35
- Size
- 15mm dia. x 1.5mm thick with adhesive backing
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.988g
- Pull Force
- 2.62 lbs (1.19kg)
- Diameter
- E. 12.7-19.05mm
- Thickness
- A. 0.00-3.18mm
D-D15H1.5-N35AD Neodymium Magnet, 15x1.5mm Disc Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 15mm dia. x 1.5mm thick with adhesive backing, Axial magnetized. Pull force is approximately 2.62 lbs (1.19kg).
