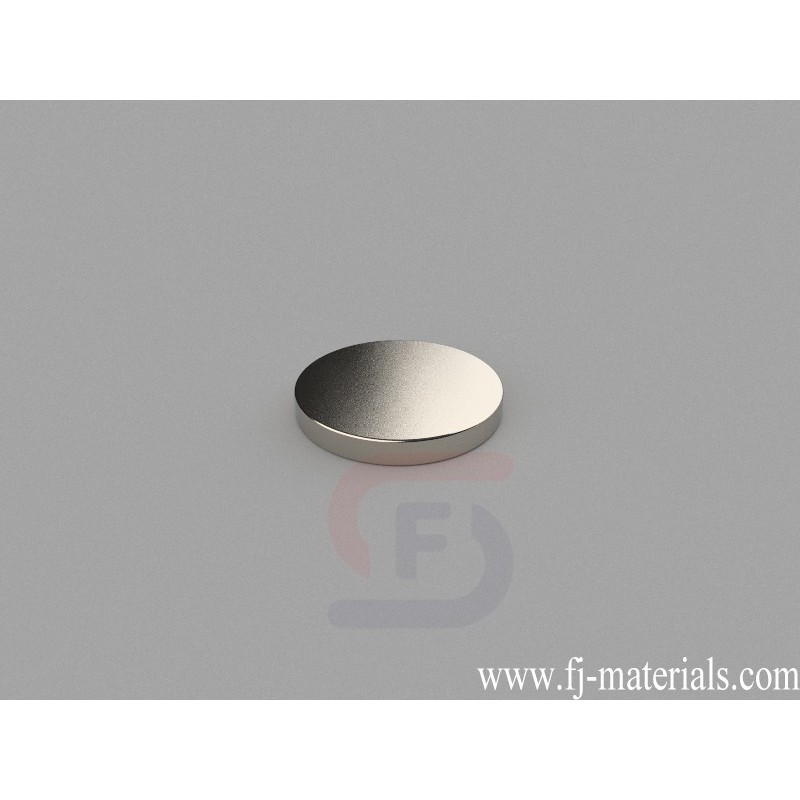

15mm dia. x 2mm thick Round Disc Magnets | D-D15H2-N42
D-D15H2-N42 Neodymium Magnet, 15x2mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 4.16 lbs (1.89kg).
D-D15H2-N42 Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 15mm dia. x 2mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 4.16 lbs (1.89kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D15H2-N42 Neodymium Magnet, 15x2mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 4.16 lbs (1.89kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D15H2-N42
Data sheet
- Item Number
- D-D15H2-N42
- Material
- NdFeB
- Grade
- N42
- Size
- 15mm dia. x 2mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 2.651g
- Pull Force
- 4.16 lbs (1.89kg)
- Diameter
- E. 12.7-19.05mm
- Thickness
- A. 0.00-3.18mm
D-D15H2-N42 Neodymium Magnet, 15x2mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 4.16 lbs (1.89kg).
