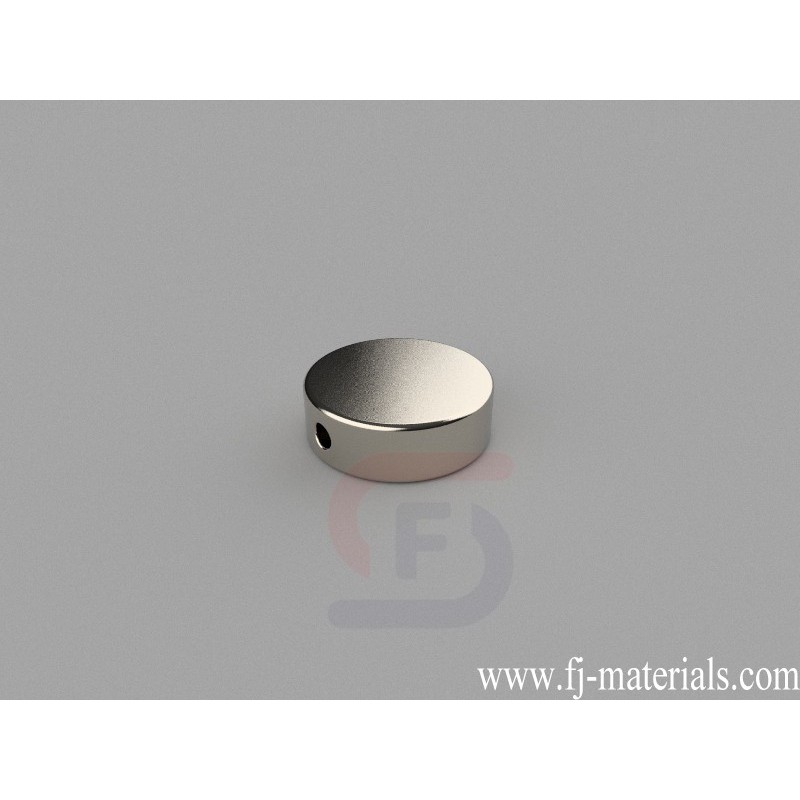

15mm dia. x 5mm thick with Side Hole 2mm Round Disc Magnets | D-D15H5/d2-N42
D-D15H5/d2-N42 Neodymium Magnet, 15x5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15mm dia. x 5mm thick with Side Hole 2mm, Axial magnetized. Pull force is approximately 10.41 lbs (4.73kg).
D-D15H5/d2-N42 Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 15mm dia. x 5mm thick with Side Hole 2mm, Ni-Cu-Ni (Nickel) coating. Pull force: 10.41 lbs (4.73kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D15H5/d2-N42 Neodymium Magnet, 15x5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15mm dia. x 5mm thick with Side Hole 2mm, Axial magnetized. Pull force is approximately 10.41 lbs (4.73kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D15H5/d2-N42
Data sheet
- Item Number
- D-D15H5/d2-N42
- Material
- NdFeB
- Grade
- N42
- Size
- 15mm dia. x 5mm thick with Side Hole 2mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 6.627g
- Pull Force
- 10.41 lbs (4.73kg)
- Diameter
- E. 12.7-19.05mm
- Thickness
- B. 3.18-6.35mm
D-D15H5/d2-N42 Neodymium Magnet, 15x5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15mm dia. x 5mm thick with Side Hole 2mm, Axial magnetized. Pull force is approximately 10.41 lbs (4.73kg).
