15mm dia. x 7mm thick Round Disc Magnets | D-D15H7-N35

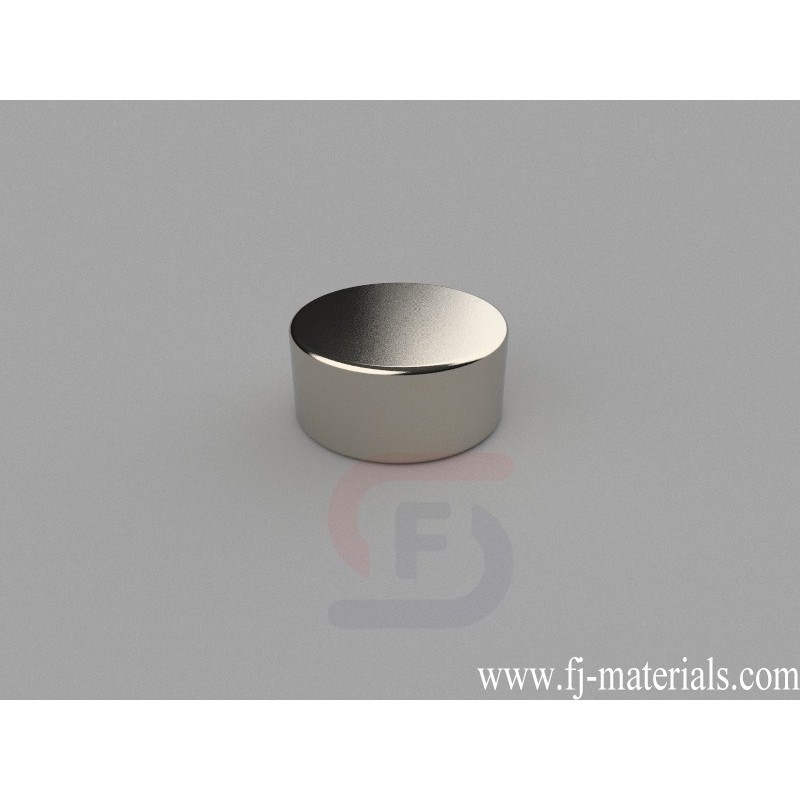

D-D15H7-N35 Neodymium Magnet, 15x7mm Disc Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 15mm dia. x 7mm thick, Axial magnetized. Pull force is approximately 12.24 lbs (5.57kg).
D-D15H7-N35 Neodymium Disc Magnets is made from high perfermance N35 NdFeB. The dimesion is 15mm dia. x 7mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 12.24 lbs (5.57kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D15H7-N35 Neodymium Magnet, 15x7mm Disc Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 15mm dia. x 7mm thick, Axial magnetized. Pull force is approximately 12.24 lbs (5.57kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D15H7-N35
Data sheet
- Item Number
- D-D15H7-N35
- Material
- NdFeB
- Grade
- N35
- Size
- 15mm dia. x 7mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 9.278g
- Pull Force
- 12.24 lbs (5.57kg)
- Diameter
- E. 12.7-19.05mm
- Thickness
- C. 6.35-9.53mm
D-D15H7-N35 Neodymium Magnet, 15x7mm Disc Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 15mm dia. x 7mm thick, Axial magnetized. Pull force is approximately 12.24 lbs (5.57kg).
