23.3mm dia. x 20mm thick Round Disc Magnets | D-D23.3H20-N48M

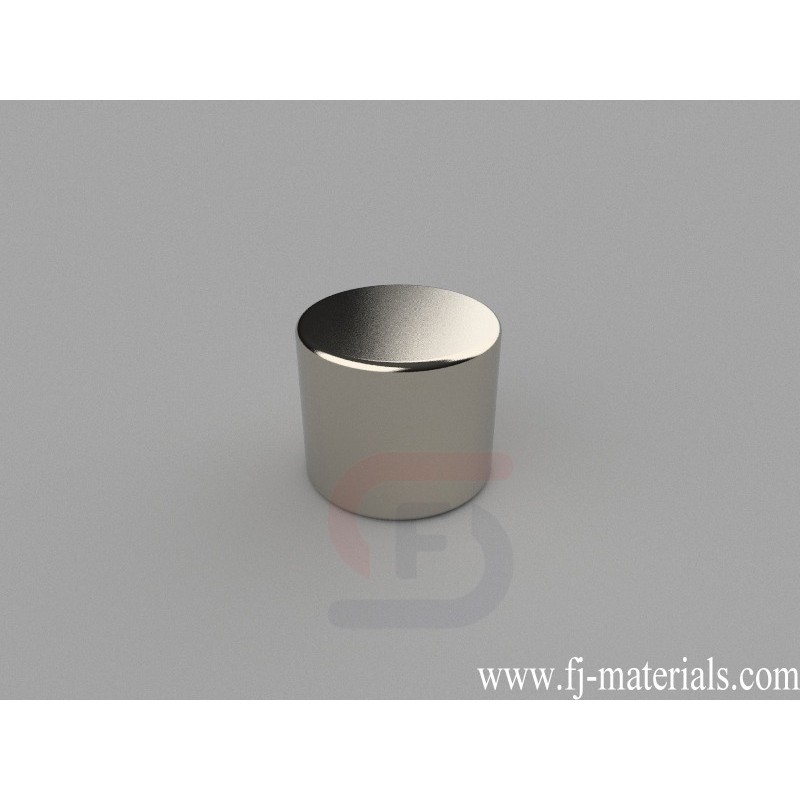

D-D23.3H20-N48M Neodymium Magnet, 23.3x20mm Disc Magnet is made of Grade N48M NdFeB, Nickel Plated. The dimension is 23.3mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 74.84 lbs (34.02kg).
D-D23.3H20-N48M Neodymium Disc Magnets is made from high perfermance N48M NdFeB. The dimesion is 23.3mm dia. x 20mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 74.84 lbs (34.02kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D23.3H20-N48M Neodymium Magnet, 23.3x20mm Disc Magnet is made of Grade N48M NdFeB, Nickel Plated. The dimension is 23.3mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 74.84 lbs (34.02kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D23.3H20-N48M
Data sheet
- Item Number
- D-D23.3H20-N48M
- Material
- NdFeB
- Grade
- N48M
- Size
- 23.3mm dia. x 20mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 63.958g
- Pull Force
- 74.84 lbs (34.02kg)
- Diameter
- F. 19.05-25.4mm
- Thickness
- F. 19.05-25.4mm
D-D23.3H20-N48M Neodymium Magnet, 23.3x20mm Disc Magnet is made of Grade N48M NdFeB, Nickel Plated. The dimension is 23.3mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 74.84 lbs (34.02kg).
