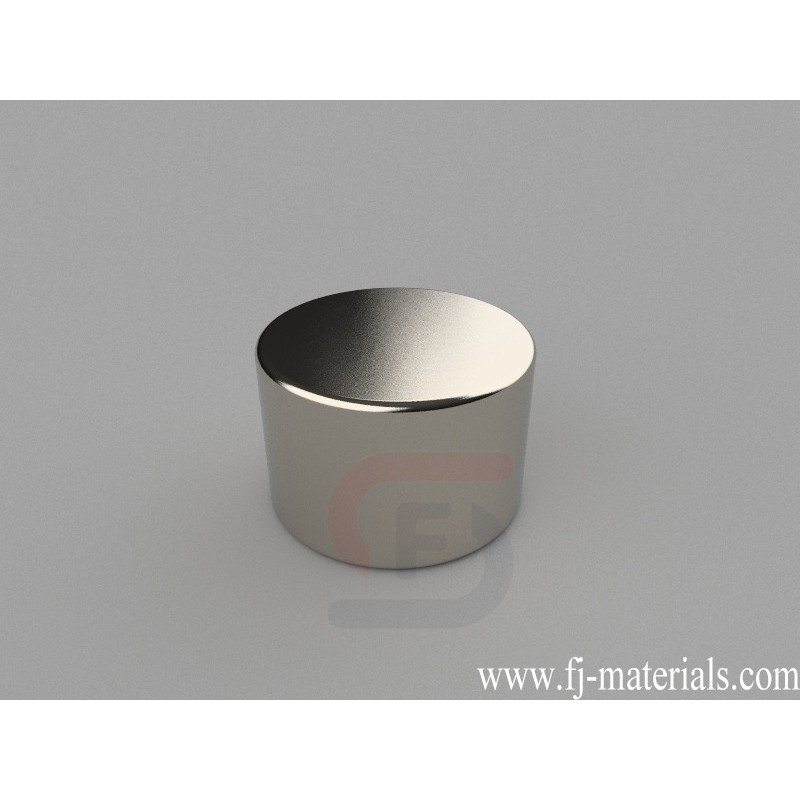

24mm dia. x 16mm thick Round Disc Magnets | D-D24H16-N48
D-D24H16-N48 Neodymium Magnet, 24x16mm Disc Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 24mm dia. x 16mm thick, Axial magnetized. Pull force is approximately 59.95 lbs (27.25kg).
D-D24H16-N48 Neodymium Disc Magnets is made from high perfermance N48 NdFeB. The dimesion is 24mm dia. x 16mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 59.95 lbs (27.25kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D24H16-N48 Neodymium Magnet, 24x16mm Disc Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 24mm dia. x 16mm thick, Axial magnetized. Pull force is approximately 59.95 lbs (27.25kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D24H16-N48
Data sheet
- Item Number
- D-D24H16-N48
- Material
- NdFeB
- Grade
- N48
- Size
- 24mm dia. x 16mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 54.287g
- Pull Force
- 59.95 lbs (27.25kg)
- Diameter
- F. 19.05-25.4mm
- Thickness
- E. 12.7-19.05mm
D-D24H16-N48 Neodymium Magnet, 24x16mm Disc Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 24mm dia. x 16mm thick, Axial magnetized. Pull force is approximately 59.95 lbs (27.25kg).
