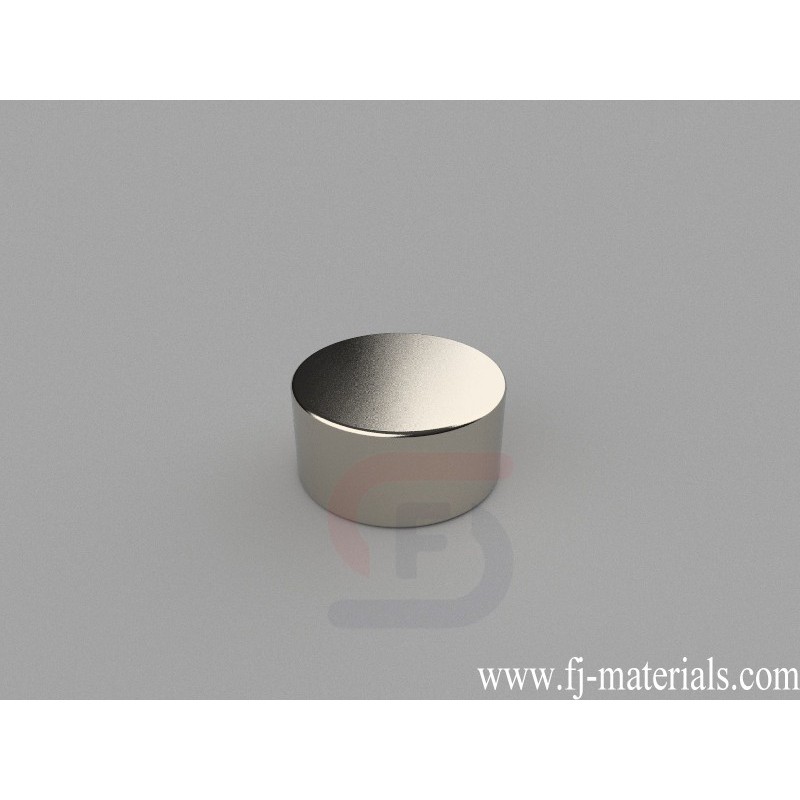

25.4mm dia. x 12.7mm thick Round Disc Magnets | D-D25.4H12.7-N38
D-D25.4H12.7-N38 Neodymium Magnet, 25.4x12.7mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 25.4mm dia. x 12.7mm thick, Axial magnetized. Pull force is approximately 40.79 lbs (18.54kg).
D-D25.4H12.7-N38 Neodymium Disc Magnets is made from high perfermance N38 NdFeB. The dimesion is 25.4mm dia. x 12.7mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 40.79 lbs (18.54kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D25.4H12.7-N38 Neodymium Magnet, 25.4x12.7mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 25.4mm dia. x 12.7mm thick, Axial magnetized. Pull force is approximately 40.79 lbs (18.54kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D25.4H12.7-N38
Data sheet
- Item Number
- D-D25.4H12.7-N38
- Material
- NdFeB
- Grade
- N38
- Size
- 25.4mm dia. x 12.7mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 48.264g
- Pull Force
- 40.79 lbs (18.54kg)
- Diameter
- F. 19.05-25.4mm
- Thickness
- D. 9.53-12.7mm
D-D25.4H12.7-N38 Neodymium Magnet, 25.4x12.7mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 25.4mm dia. x 12.7mm thick, Axial magnetized. Pull force is approximately 40.79 lbs (18.54kg).
