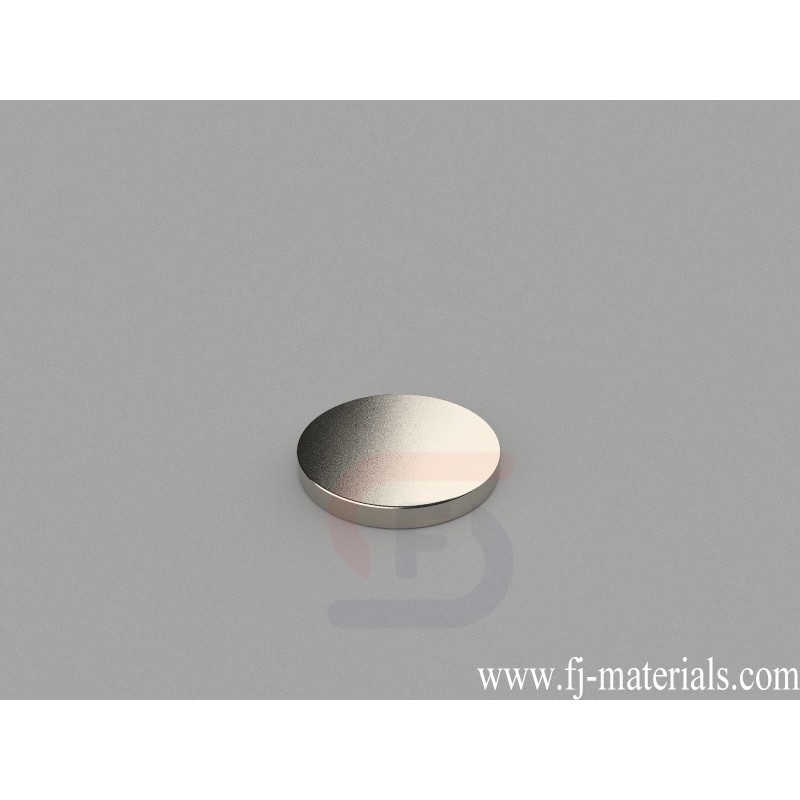

25.4mm dia. x 3.175mm thick Round Disc Magnets | D-D25.4H3.175-N52
D-D25.4H3.175-N52 Neodymium Magnet, 25.4x3.175mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 25.4mm dia. x 3.175mm thick, Axial magnetized. Pull force is approximately 13.32 lbs (6.05kg).
D-D25.4H3.175-N52 Neodymium Disc Magnets is made from high perfermance N52 NdFeB. The dimesion is 25.4mm dia. x 3.175mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 13.32 lbs (6.05kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D25.4H3.175-N52 Neodymium Magnet, 25.4x3.175mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 25.4mm dia. x 3.175mm thick, Axial magnetized. Pull force is approximately 13.32 lbs (6.05kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D25.4H3.175-N52
Data sheet
- Item Number
- D-D25.4H3.175-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 25.4mm dia. x 3.175mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 12.066g
- Pull Force
- 13.32 lbs (6.05kg)
- Diameter
- F. 19.05-25.4mm
- Thickness
- A. 0.00-3.18mm
D-D25.4H3.175-N52 Neodymium Magnet, 25.4x3.175mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 25.4mm dia. x 3.175mm thick, Axial magnetized. Pull force is approximately 13.32 lbs (6.05kg).
