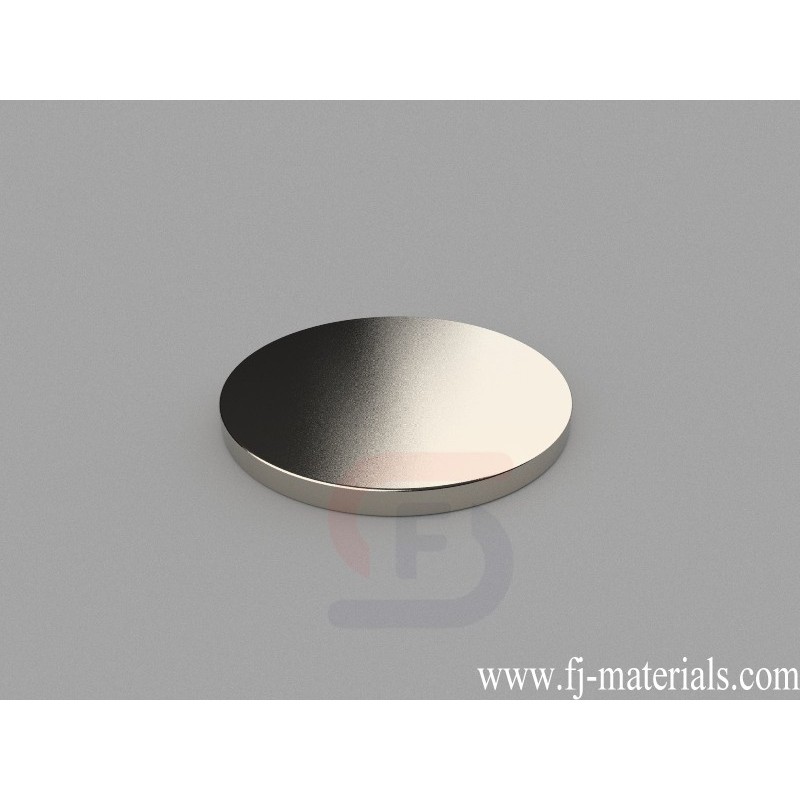

25mm dia. x 2mm thick Round Disc Magnets | D-D25H2-N38
D-D25H2-N38 Neodymium Magnet, 25x2mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 25mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 6.32 lbs (2.87kg).
D-D25H2-N38 Neodymium Disc Magnets is made from high perfermance N38 NdFeB. The dimesion is 25mm dia. x 2mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 6.32 lbs (2.87kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D25H2-N38 Neodymium Magnet, 25x2mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 25mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 6.32 lbs (2.87kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D25H2-N38
Data sheet
- Item Number
- D-D25H2-N38
- Material
- NdFeB
- Grade
- N38
- Size
- 25mm dia. x 2mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 7.363g
- Pull Force
- 6.32 lbs (2.87kg)
- Diameter
- F. 19.05-25.4mm
- Thickness
- A. 0.00-3.18mm
D-D25H2-N38 Neodymium Magnet, 25x2mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 25mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 6.32 lbs (2.87kg).
