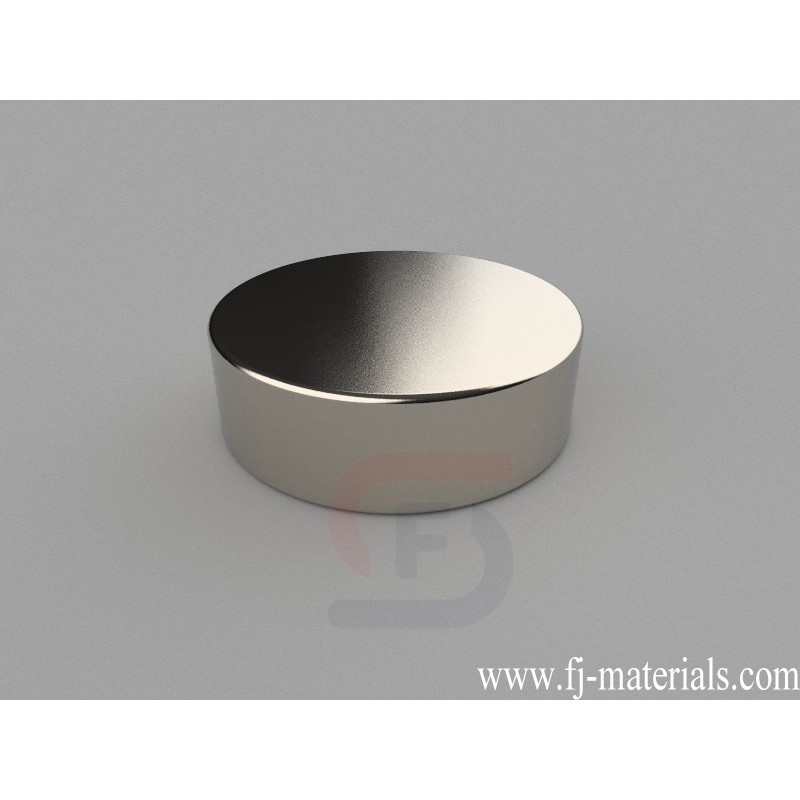

25mm dia. x 8mm thick Round Disc Magnets | D-D25H8-N35
D-D25H8-N35 Neodymium Magnet, 25x8mm Disc Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 25mm dia. x 8mm thick, Axial magnetized. Pull force is approximately 23.32 lbs (10.60kg).
D-D25H8-N35 Neodymium Disc Magnets is made from high perfermance N35 NdFeB. The dimesion is 25mm dia. x 8mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 23.32 lbs (10.60kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D25H8-N35 Neodymium Magnet, 25x8mm Disc Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 25mm dia. x 8mm thick, Axial magnetized. Pull force is approximately 23.32 lbs (10.60kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D25H8-N35
Data sheet
- Item Number
- D-D25H8-N35
- Material
- NdFeB
- Grade
- N35
- Size
- 25mm dia. x 8mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 29.452g
- Pull Force
- 23.32 lbs (10.60kg)
- Diameter
- F. 19.05-25.4mm
- Thickness
- C. 6.35-9.53mm
D-D25H8-N35 Neodymium Magnet, 25x8mm Disc Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 25mm dia. x 8mm thick, Axial magnetized. Pull force is approximately 23.32 lbs (10.60kg).
