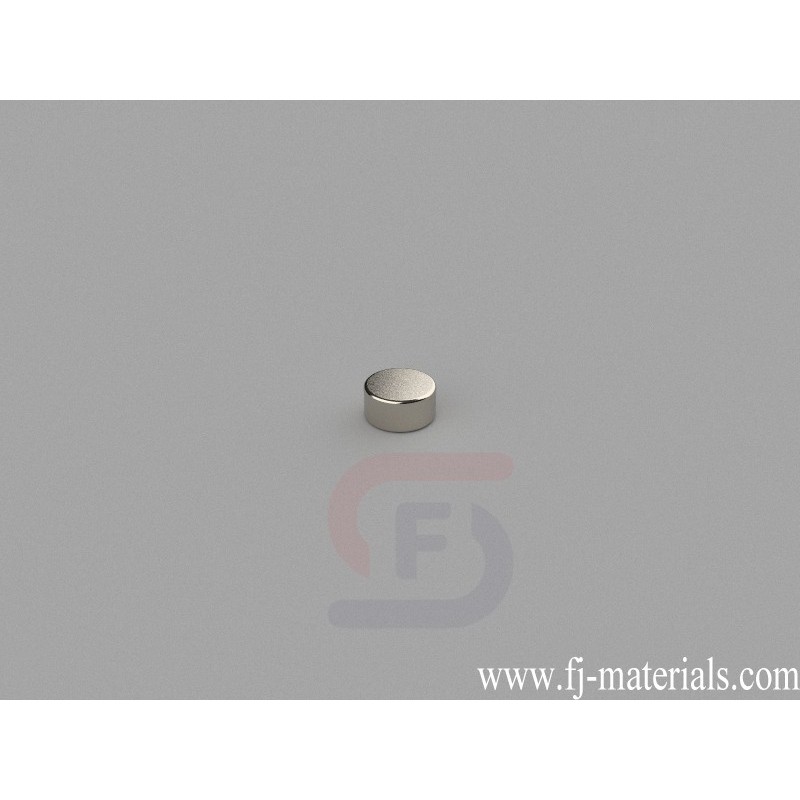

3.175mm dia. x 1.58mm thick Round Disc Magnets | D-D3.175H1.58-N52BNi
D-D3.175H1.58-N52BNi Neodymium Magnet, 3.175x1.58mm Disc Magnet is made of Grade N52 NdFeB, Black Nickel Plated. The dimension is 3.175mm dia. x 1.58mm thick, Axial magnetized. Pull force is approximately 0.83 lbs (0.38kg).
D-D3.175H1.58-N52BNi Neodymium Disc Magnets is made from high perfermance N52 NdFeB. The dimesion is 3.175mm dia. x 1.58mm thick, Black Nickel (BNi) coating. Pull force: 0.83 lbs (0.38kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D3.175H1.58-N52BNi Neodymium Magnet, 3.175x1.58mm Disc Magnet is made of Grade N52 NdFeB, Black Nickel Plated. The dimension is 3.175mm dia. x 1.58mm thick, Axial magnetized. Pull force is approximately 0.83 lbs (0.38kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D3.175H1.58-N52BNi
Data sheet
- Item Number
- D-D3.175H1.58-N52BNi
- Material
- NdFeB
- Grade
- N52
- Size
- 3.175mm dia. x 1.58mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Black Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.094g
- Pull Force
- 0.83 lbs (0.38kg)
- Diameter
- A. 0.00-3.18mm
- Thickness
- A. 0.00-3.18mm
D-D3.175H1.58-N52BNi Neodymium Magnet, 3.175x1.58mm Disc Magnet is made of Grade N52 NdFeB, Black Nickel Plated. The dimension is 3.175mm dia. x 1.58mm thick, Axial magnetized. Pull force is approximately 0.83 lbs (0.38kg).
