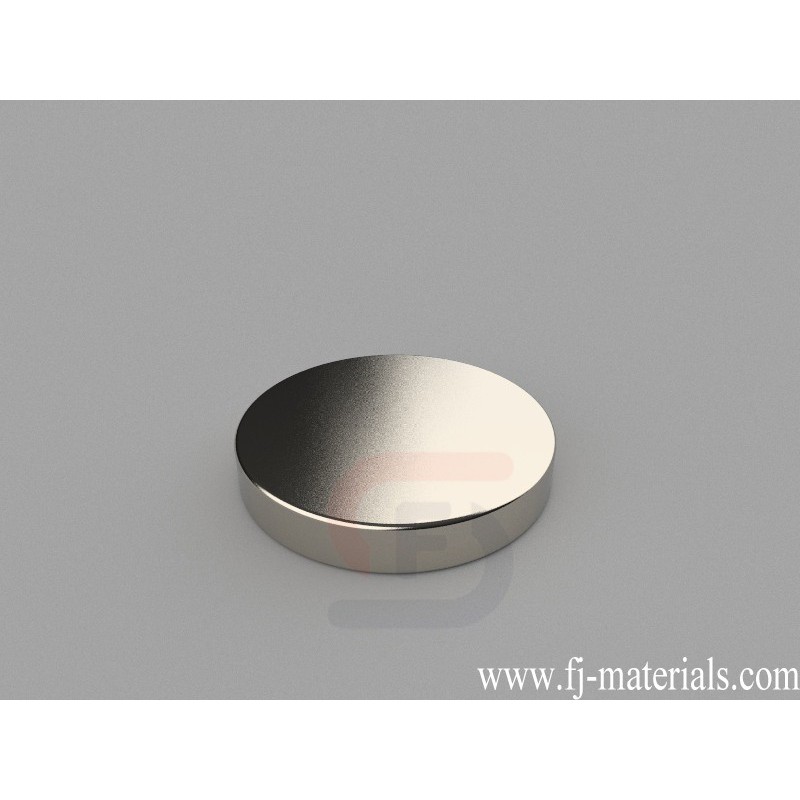

30mm dia. x 5mm thick Round Disc Magnets | D-D30H5-N38
D-D30H5-N38 Neodymium Magnet, 30x5mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 30mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 18.97 lbs (8.62kg).
D-D30H5-N38 Neodymium Disc Magnets is made from high perfermance N38 NdFeB. The dimesion is 30mm dia. x 5mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 18.97 lbs (8.62kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D30H5-N38 Neodymium Magnet, 30x5mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 30mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 18.97 lbs (8.62kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D30H5-N38
Data sheet
- Item Number
- D-D30H5-N38
- Material
- NdFeB
- Grade
- N38
- Size
- 30mm dia. x 5mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 26.507g
- Pull Force
- 18.97 lbs (8.62kg)
- Diameter
- G. 25.4-50.8mm
- Thickness
- B. 3.18-6.35mm
D-D30H5-N38 Neodymium Magnet, 30x5mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 30mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 18.97 lbs (8.62kg).
