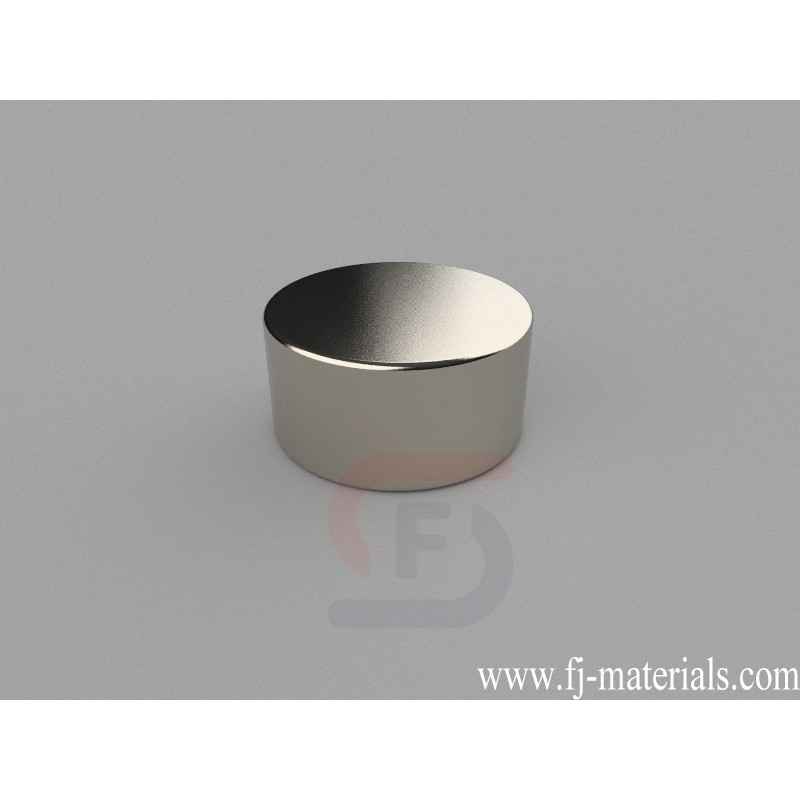

38.1mm dia. x 19.05mm thick Round Disc Magnets | D-D38.1H19.05-N52
D-D38.1H19.05-N52 Neodymium Magnet, 38.1x19.05mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 38.1mm dia. x 19.05mm thick, Axial magnetized. Pull force is approximately 119.88 lbs (54.49kg).
D-D38.1H19.05-N52 Neodymium Disc Magnets is made from high perfermance N52 NdFeB. The dimesion is 38.1mm dia. x 19.05mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 119.88 lbs (54.49kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D38.1H19.05-N52 Neodymium Magnet, 38.1x19.05mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 38.1mm dia. x 19.05mm thick, Axial magnetized. Pull force is approximately 119.88 lbs (54.49kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D38.1H19.05-N52
Data sheet
- Item Number
- D-D38.1H19.05-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 38.1mm dia. x 19.05mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 162.891g
- Pull Force
- 119.88 lbs (54.49kg)
- Diameter
- G. 25.4-50.8mm
- Thickness
- E. 12.7-19.05mm
D-D38.1H19.05-N52 Neodymium Magnet, 38.1x19.05mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 38.1mm dia. x 19.05mm thick, Axial magnetized. Pull force is approximately 119.88 lbs (54.49kg).
