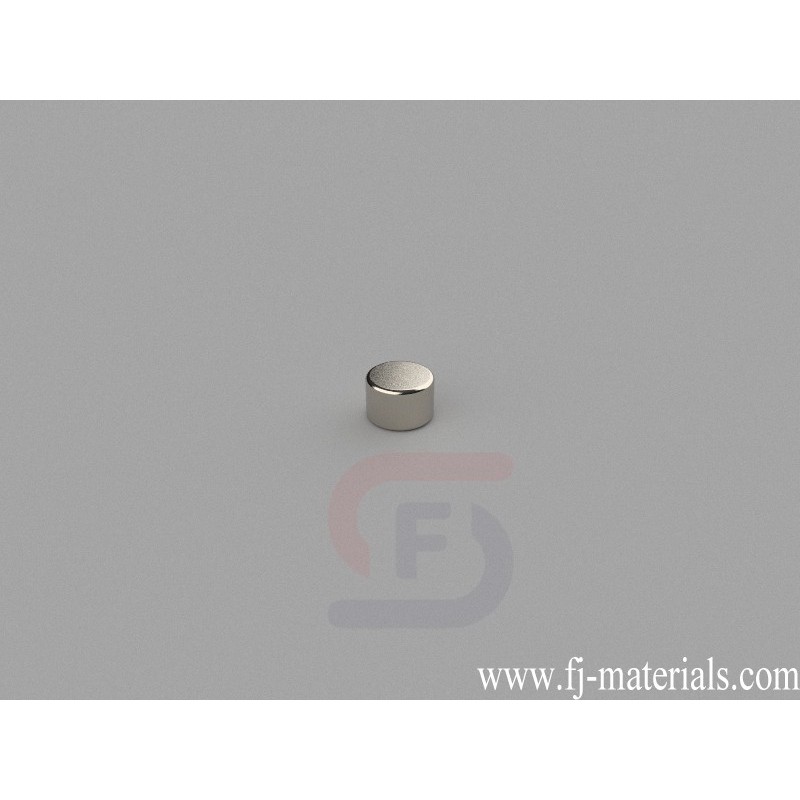

3mm dia. x 2mm thick Round Disc Magnets | D-D3H2-N50Au
D-D3H2-N50Au Neodymium Magnet, 3x2mm Disc Magnet is made of Grade N50 NdFeB, Gold Plated. The dimension is 3mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 0.96 lbs (0.44kg).
D-D3H2-N50Au Neodymium Disc Magnets is made from high perfermance N50 NdFeB. The dimesion is 3mm dia. x 2mm thick, Gold (Au) coating. Pull force: 0.96 lbs (0.44kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D3H2-N50Au Neodymium Magnet, 3x2mm Disc Magnet is made of Grade N50 NdFeB, Gold Plated. The dimension is 3mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 0.96 lbs (0.44kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D3H2-N50Au
Data sheet
- Item Number
- D-D3H2-N50Au
- Material
- NdFeB
- Grade
- N50
- Size
- 3mm dia. x 2mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Gold Plated
- Magnetization Direction
- Axial
- Weight
- 0.106g
- Pull Force
- 0.96 lbs (0.44kg)
- Diameter
- A. 0.00-3.18mm
- Thickness
- A. 0.00-3.18mm
D-D3H2-N50Au Neodymium Magnet, 3x2mm Disc Magnet is made of Grade N50 NdFeB, Gold Plated. The dimension is 3mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 0.96 lbs (0.44kg).
