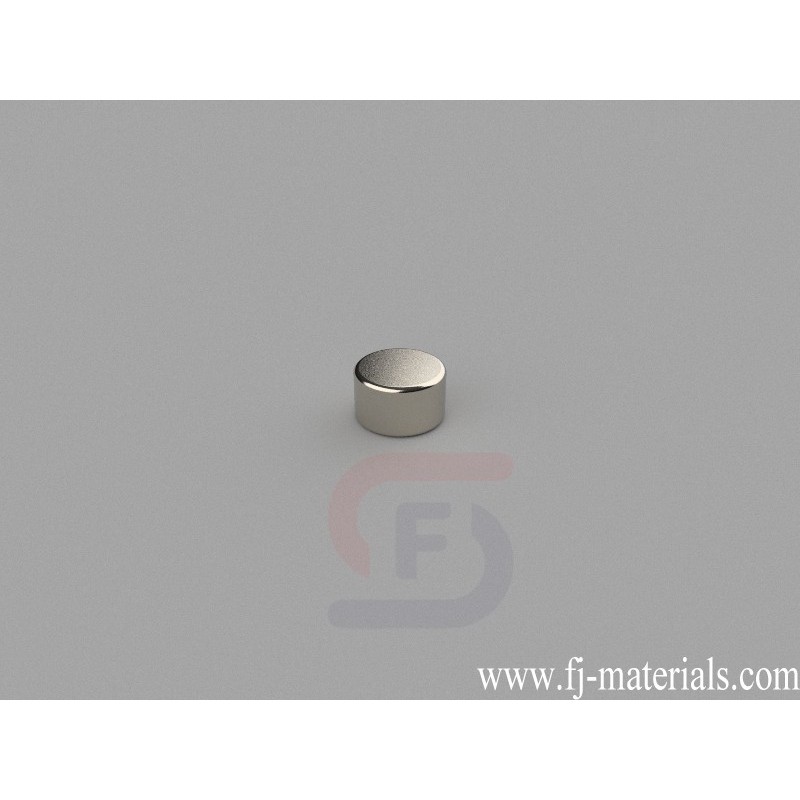

4mm dia. x 2.4mm thick Round Disc Magnets | D-D4H2.4-N50C
D-D4H2.4-N50C Neodymium Magnet, 4x2.4mm Disc Magnet is made of Grade N50 NdFeB, Parylene C. The dimension is 4mm dia. x 2.4mm thick, Axial magnetized. Pull force is approximately 1.54 lbs (0.70kg).
D-D4H2.4-N50C Neodymium Disc Magnets is made from high perfermance N50 NdFeB. The dimesion is 4mm dia. x 2.4mm thick, Parylene C coating. Pull force: 1.54 lbs (0.70kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D4H2.4-N50C Neodymium Magnet, 4x2.4mm Disc Magnet is made of Grade N50 NdFeB, Parylene C. The dimension is 4mm dia. x 2.4mm thick, Axial magnetized. Pull force is approximately 1.54 lbs (0.70kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D4H2.4-N50C
Data sheet
- Item Number
- D-D4H2.4-N50C
- Material
- NdFeB
- Grade
- N50
- Size
- 4mm dia. x 2.4mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Parylene C
- Magnetization Direction
- Axial
- Weight
- 0.226g
- Pull Force
- 1.54 lbs (0.70kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- A. 0.00-3.18mm
D-D4H2.4-N50C Neodymium Magnet, 4x2.4mm Disc Magnet is made of Grade N50 NdFeB, Parylene C. The dimension is 4mm dia. x 2.4mm thick, Axial magnetized. Pull force is approximately 1.54 lbs (0.70kg).
