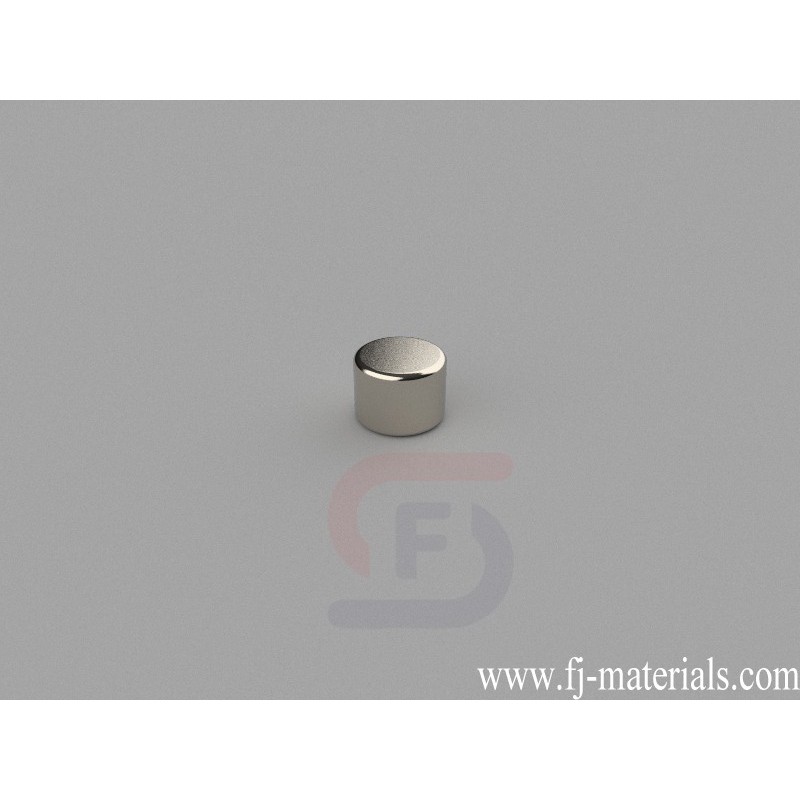

4mm dia. x 3mm thick Round Disc Magnets | D-D4H3-N52-DIA
D-D4H3-N52-DIA Neodymium Magnet, 4x3mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 4mm dia. x 3mm thick, Diametric magnetized. Pull force is approximately 1.98 lbs (0.90kg).
D-D4H3-N52-DIA Neodymium Disc Magnets is made from high perfermance N52 NdFeB. The dimesion is 4mm dia. x 3mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 1.98 lbs (0.90kg). Magnetization direction: DIAMETRICALLY MAGNETISED
D-D4H3-N52-DIA Neodymium Magnet, 4x3mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 4mm dia. x 3mm thick, Diametric magnetized. Pull force is approximately 1.98 lbs (0.90kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D4H3-N52-DIA
Data sheet
- Item Number
- D-D4H3-N52-DIA
- Material
- NdFeB
- Grade
- N52
- Size
- 4mm dia. x 3mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Diametric
- Weight
- 0.283g
- Pull Force
- 1.98 lbs (0.90kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- A. 0.00-3.18mm
D-D4H3-N52-DIA Neodymium Magnet, 4x3mm Disc Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 4mm dia. x 3mm thick, Diametric magnetized. Pull force is approximately 1.98 lbs (0.90kg).
