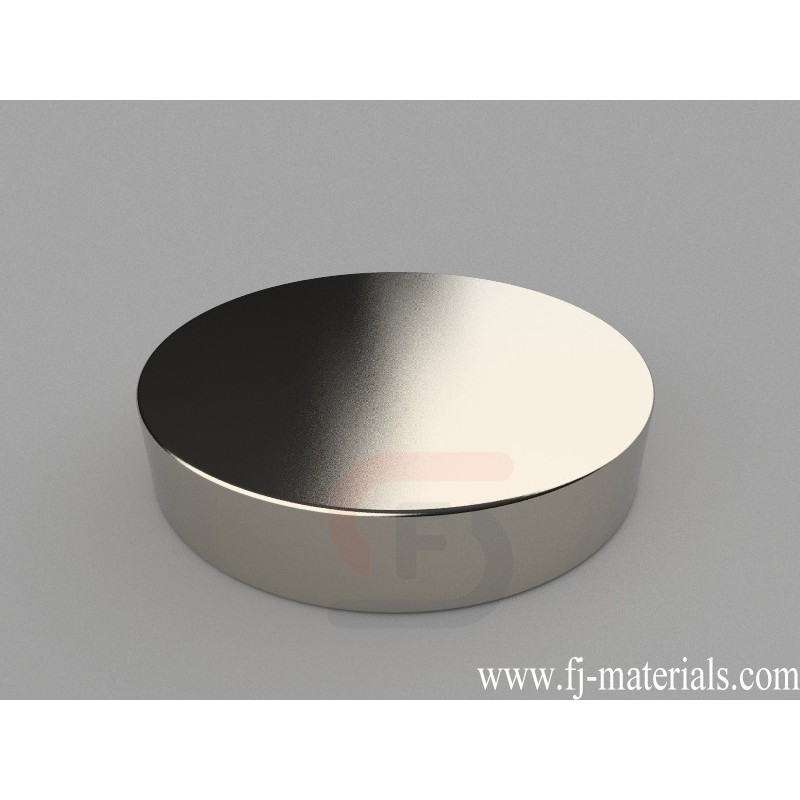

50mm dia. x 10mm thick Round Disc Magnets | D-D50H10-N45
D-D50H10-N45 Neodymium Magnet, 50x10mm Disc Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 50mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 73.66 lbs (33.48kg).
D-D50H10-N45 Neodymium Disc Magnets is made from high perfermance N45 NdFeB. The dimesion is 50mm dia. x 10mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 73.66 lbs (33.48kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D50H10-N45 Neodymium Magnet, 50x10mm Disc Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 50mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 73.66 lbs (33.48kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D50H10-N45
Data sheet
- Item Number
- D-D50H10-N45
- Material
- NdFeB
- Grade
- N45
- Size
- 50mm dia. x 10mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 147.262g
- Pull Force
- 73.66 lbs (33.48kg)
- Diameter
- G. 25.4-50.8mm
- Thickness
- D. 9.53-12.7mm
D-D50H10-N45 Neodymium Magnet, 50x10mm Disc Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 50mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 73.66 lbs (33.48kg).
