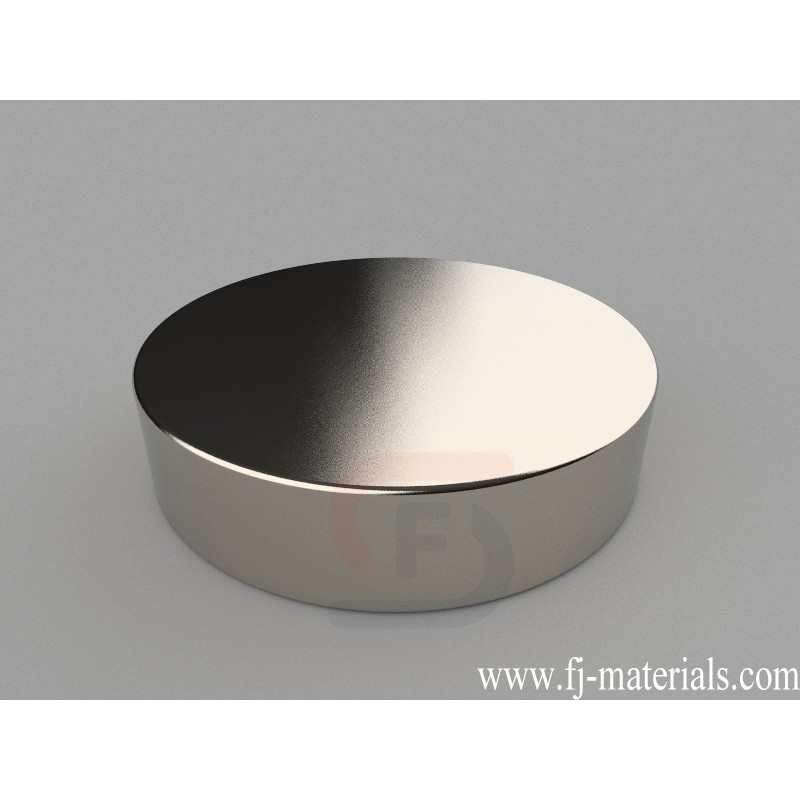

50mm dia. x 12mm thick Round Disc Magnets | D-D50H12-N35
D-D50H12-N35 Neodymium Magnet, 50x12mm Disc Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 50mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 69.97 lbs (31.80kg).
D-D50H12-N35 Neodymium Disc Magnets is made from high perfermance N35 NdFeB. The dimesion is 50mm dia. x 12mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 69.97 lbs (31.80kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D50H12-N35 Neodymium Magnet, 50x12mm Disc Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 50mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 69.97 lbs (31.80kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D50H12-N35
Data sheet
- Item Number
- D-D50H12-N35
- Material
- NdFeB
- Grade
- N35
- Size
- 50mm dia. x 12mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 176.715g
- Pull Force
- 69.97 lbs (31.80kg)
- Diameter
- G. 25.4-50.8mm
- Thickness
- D. 9.53-12.7mm
D-D50H12-N35 Neodymium Magnet, 50x12mm Disc Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 50mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 69.97 lbs (31.80kg).
