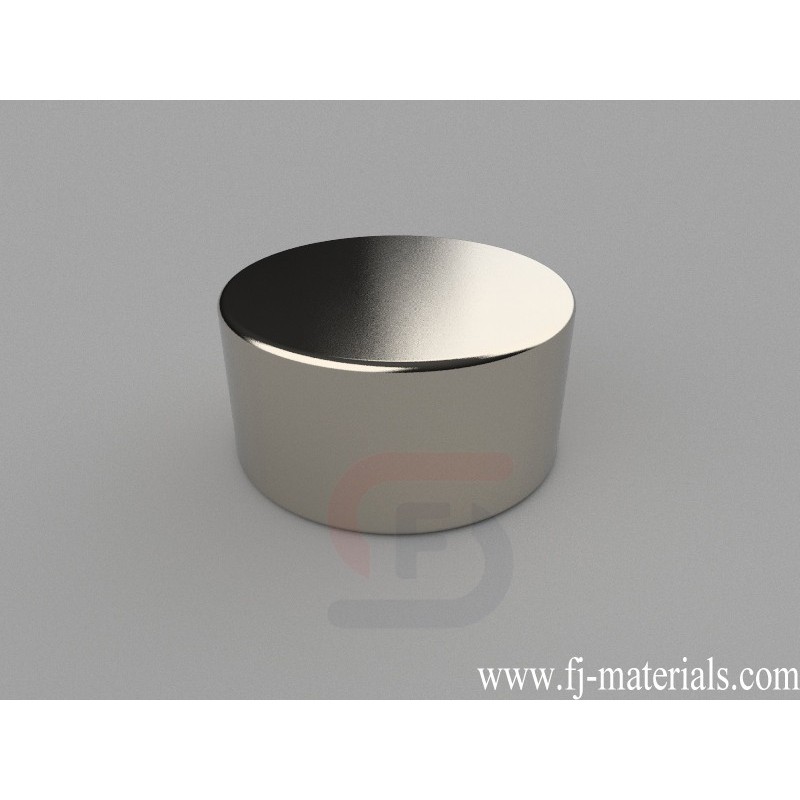

50mm dia. x 25mm thick Round Disc Magnets | D-D50H25-N45
D-D50H25-N45 Neodymium Magnet, 50x25mm Disc Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 50mm dia. x 25mm thick, Axial magnetized. Pull force is approximately 184.15 lbs (83.71kg).
D-D50H25-N45 Neodymium Disc Magnets is made from high perfermance N45 NdFeB. The dimesion is 50mm dia. x 25mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 184.15 lbs (83.71kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D50H25-N45 Neodymium Magnet, 50x25mm Disc Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 50mm dia. x 25mm thick, Axial magnetized. Pull force is approximately 184.15 lbs (83.71kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D50H25-N45
Data sheet
- Item Number
- D-D50H25-N45
- Material
- NdFeB
- Grade
- N45
- Size
- 50mm dia. x 25mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 368.155g
- Pull Force
- 184.15 lbs (83.71kg)
- Diameter
- G. 25.4-50.8mm
- Thickness
- F. 19.05-25.4mm
D-D50H25-N45 Neodymium Magnet, 50x25mm Disc Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 50mm dia. x 25mm thick, Axial magnetized. Pull force is approximately 184.15 lbs (83.71kg).
