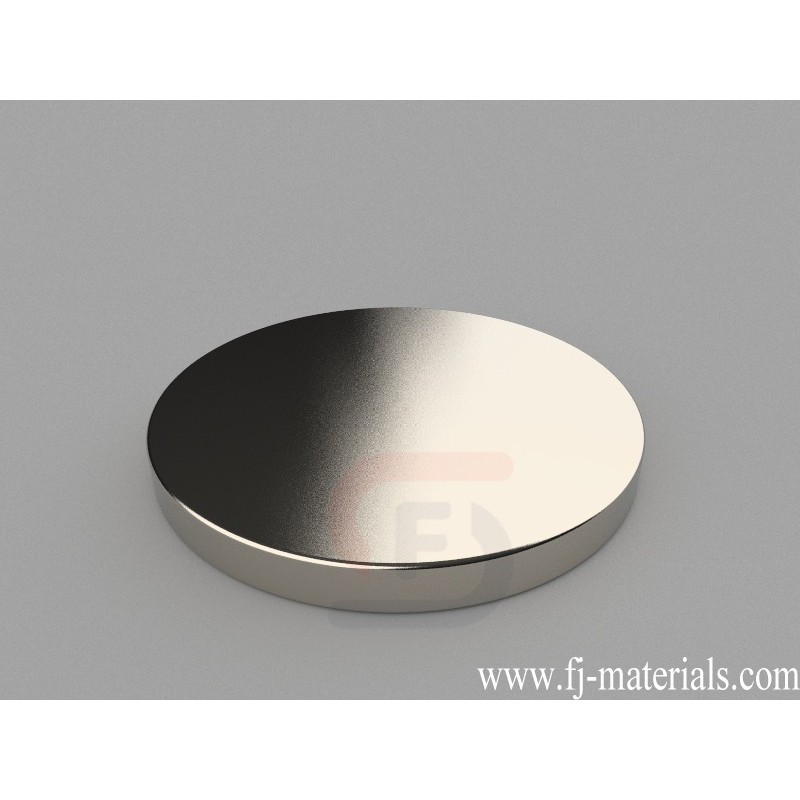

50mm dia. x 5mm thick Round Disc Magnets | D-D50H5-N35
D-D50H5-N35 Neodymium Magnet, 50x5mm Disc Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 50mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 29.15 lbs (13.25kg).
D-D50H5-N35 Neodymium Disc Magnets is made from high perfermance N35 NdFeB. The dimesion is 50mm dia. x 5mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 29.15 lbs (13.25kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D50H5-N35 Neodymium Magnet, 50x5mm Disc Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 50mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 29.15 lbs (13.25kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D50H5-N35
Data sheet
- Item Number
- D-D50H5-N35
- Material
- NdFeB
- Grade
- N35
- Size
- 50mm dia. x 5mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 73.631g
- Pull Force
- 29.15 lbs (13.25kg)
- Diameter
- G. 25.4-50.8mm
- Thickness
- B. 3.18-6.35mm
D-D50H5-N35 Neodymium Magnet, 50x5mm Disc Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 50mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 29.15 lbs (13.25kg).
