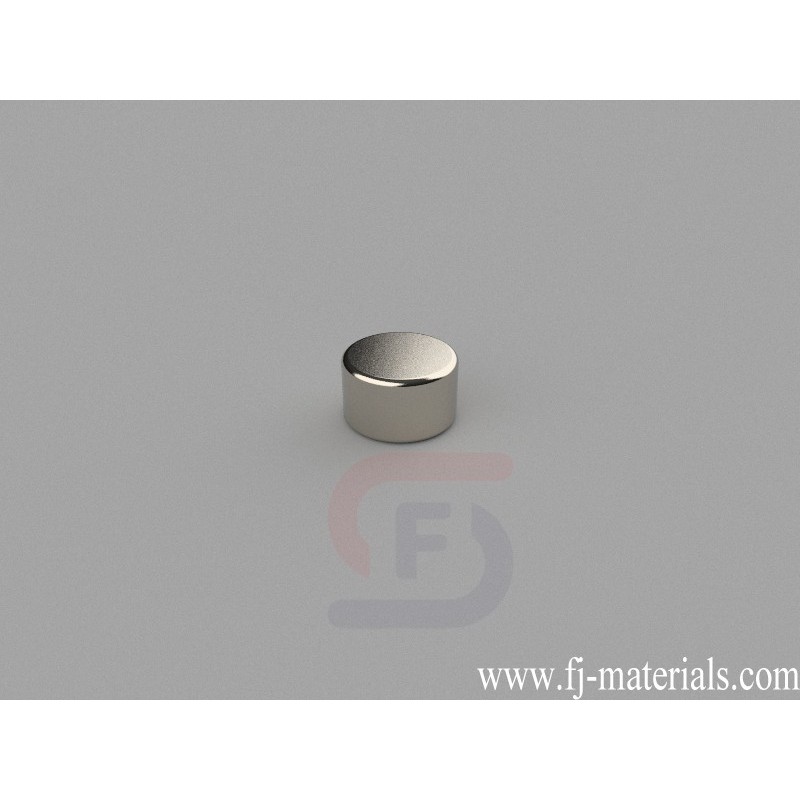

5mm dia. x 3mm thick Round Disc Magnets | D-D5H3-N50Z
D-D5H3-N50Z Neodymium Magnet, 5x3mm Disc Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 5mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 2.41 lbs (1.10kg).
D-D5H3-N50Z Neodymium Disc Magnets is made from high perfermance N50 NdFeB. The dimesion is 5mm dia. x 3mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 2.41 lbs (1.10kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D5H3-N50Z Neodymium Magnet, 5x3mm Disc Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 5mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 2.41 lbs (1.10kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D5H3-N50Z
Data sheet
- Item Number
- D-D5H3-N50Z
- Material
- NdFeB
- Grade
- N50
- Size
- 5mm dia. x 3mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.442g
- Pull Force
- 2.41 lbs (1.10kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- A. 0.00-3.18mm
D-D5H3-N50Z Neodymium Magnet, 5x3mm Disc Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 5mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 2.41 lbs (1.10kg).
