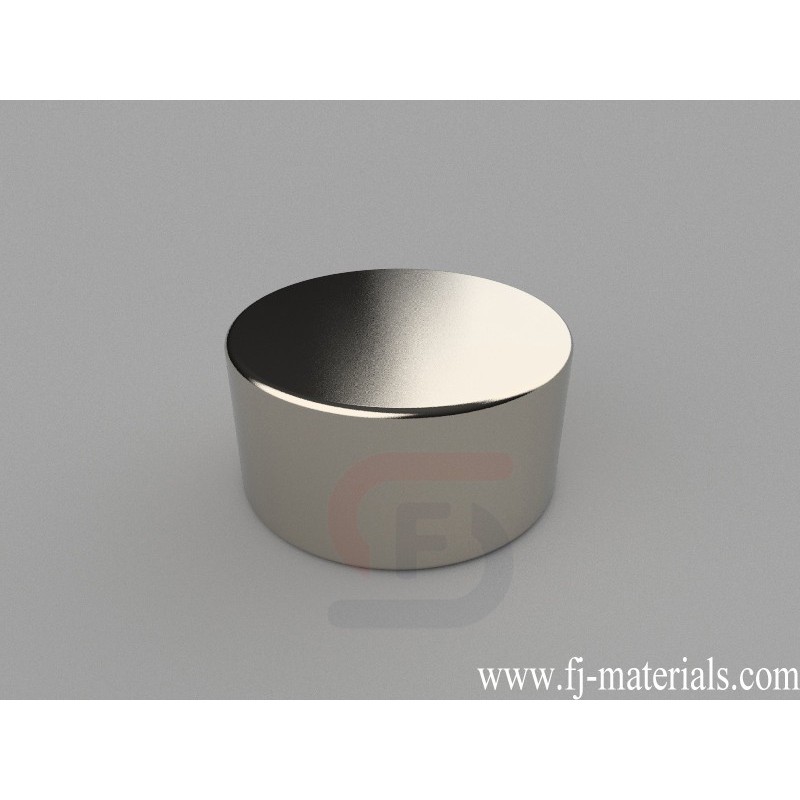

60mm dia. x 30mm thick Round Disc Magnets | D-D60H30-N33
D-D60H30-N33 Neodymium Magnet, 60x30mm Disc Magnet is made of Grade N33 NdFeB, Nickel Plated. The dimension is 60mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 199.63 lbs (90.74kg).
D-D60H30-N33 Neodymium Disc Magnets is made from high perfermance N33 NdFeB. The dimesion is 60mm dia. x 30mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 199.63 lbs (90.74kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D60H30-N33 Neodymium Magnet, 60x30mm Disc Magnet is made of Grade N33 NdFeB, Nickel Plated. The dimension is 60mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 199.63 lbs (90.74kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D60H30-N33
Data sheet
- Item Number
- D-D60H30-N33
- Material
- NdFeB
- Grade
- N33
- Size
- 60mm dia. x 30mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 636.173g
- Pull Force
- 199.63 lbs (90.74kg)
- Diameter
- H. 50.8-254mm
- Thickness
- G. 25.4-50.8mm
D-D60H30-N33 Neodymium Magnet, 60x30mm Disc Magnet is made of Grade N33 NdFeB, Nickel Plated. The dimension is 60mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 199.63 lbs (90.74kg).
